U series

Excellent for machining brittle, extra hard, and tough materials
Applicable for precision machining of conductive metallic materials and non-conductive, non-metallic brittle materials, such as glass, ceramics, semiconductors, etc
Upgrade defect-free rate and throughput
Improve machining surface finish and reduce need for polishing process
Help to reduce cutting stress while extending tool service life

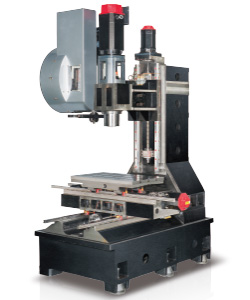

All structural parts are manufactured from high quality Meehanite cast iron (FC30) and hardened to a hardness over HB 190, then tempered to relieve internal stress
Three axes are fitted with high precision P class linear ways with oversized blocks
Width of linear way: 30mm
Back mount chip exhaust system for saving space
Class C3 high precision ballscrews on three axes
Ballscrew diameter: 32mm
Powerful high performance AC servomotor drive enable 36 m/min of rapid traverse rate. Smooth movement combined with powerful drive to assure fine finishes on machined surfaces

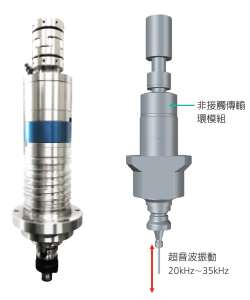

Non-contact electricity transfer. electric energy transfer efficiency can reach 93%

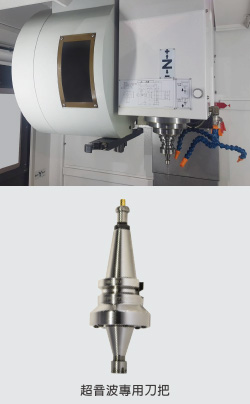

24,000 RPM high speed spindle
Outstanding spindle rigidity
Providing total solutions in ultrasonic machining
Dynamic balance grade: G0.4
With the use of amplitude measuring device (optional), controller and driver execute tool amplitude feedback system, thus acheving automated machining

Non-contact (wireless) electricity transfer. High efficiency electric energy transfer
Range of axial too丨vibration frequency: 20-35 KHz
Range of amplitude: 1-14 µm (automatic frequency sweep)
Tool accuracy can reach to within 5 µm

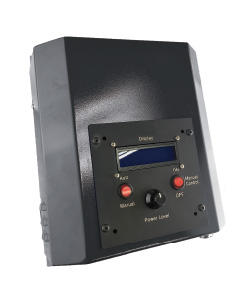

Max. Power: 60W
Range of frequency sweep: 20 KHz-35 KHz
35 KHz-42 KHz
Max. input voltage: 220 VAC/24 VDC
Max. output voltage: 200 VAC
Amplitude control range: 30-1 00%
Protection: Over-voltage and over-current protection
POWER SWITCH

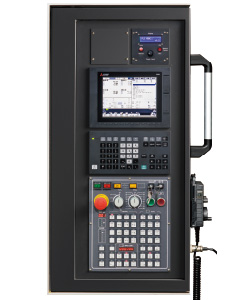

Communicate with various brands of controller through 1/0 Vibration amplitude 1-14 µm
Frequency: 20 KHz-35 KHz
Automatic frequency sweeping, pairing, and tracing

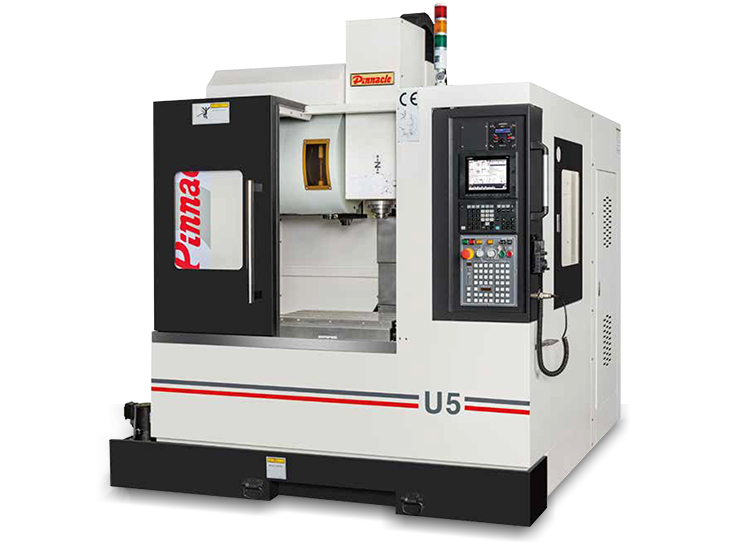

MODEL	U5	U8
TABLE
Table Size	660 x 410	910 x 510
Travel Ranges (X/Y/Z mm)	510 / 410 / 510	510 / 510 / 510
Max. Table Load (kgs)	300	300
Spindle Nose to Table Surfac (mm)	150~660	150~660
T Slot Size	14 x 125 x 3	14 x 125 x 4
SPINDLE
Tool Shank & Pull Stud	BT30	BT30
Spindle Inner Diameter (mm)	Direct drive = Ø45	Direct drive = Ø45
Spindle center to Column (mm)	462	562
Spindle Max Speed (rpm) Direct Drive	24000	24000
Clamping Force (kgf))	250	250
Spindle Power (con/30min kW)	3.7 / 5.5	3.7 / 5.5
AXIS SERVO MOTOR
Rapid Feed Rate (X/Y/Z m/min)	48	48
Cutting Speed (X/Y/Z/ mm/min)	20000	20000
X/Y/Z Axes Power (kW)	1.5 / 1.5 / 2.0	1.5 / 1.5 / 2.0
X/Y/Z Axes Torque (Nm)	4.8 / 4.8 / 6.4	4.8 / 4.8 / 6.4
AUTO TOOL CHANGER
Cam Type	ARM	ARM
Tool Selection (Bi-Direction)	RANDOM	RANDOM
Tool Storage Capacity (PCs)	20	20
Max. Tool Diameter (mm)	Ø 75	Ø 75
Max. Tool Length (mm)	150	150
Max. Tool Weight (kgs)	4	4
MISCELLANEOUS
Air Requirement (Kg/cm2)	6	6
Voltage (v)	220	220
Power Requirement (KVA)	15	15
Coolant Tank Capacity (L)	150	150
Machine Weight (kgs)	3400	3600
Machine Height (mm)	2815	2815
Floor Space (L x W mm)	1700 x 2250	2200 x 2380

All Specifications And Designs Are Subject To Change Without Notice.

Ultrasonic machining is suitable for various materials, including hard, brittle, and hard-to-cut materials, conductive and non-conductive materials
For example: Glass, ceramic, (aluminum oxide, silicon nitride) quartz, silicon, graphite, jewel, hard alloy, stain丨ess steel, silicon carbide and carbon fiber board, etc

Planar milling to 0.05 mm depth with 02, grain size 200 tool
Milling square groove to 0.05 mm depth with 02, grain size 200 tool Drill a 00.45, 10mm depth, 1 min 15 sec
