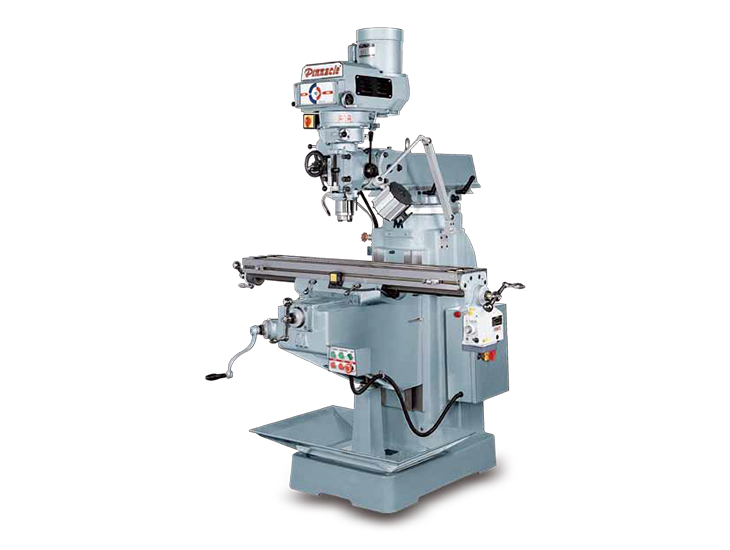

PK-1½GRM-KV

PK-1½GRM-KV

Features

  • Variable speed head.
  • NT30# / R8 spindle taper.
  • 3HP powerful motor.
  • Dovetail slideways.
  • Hardened and ground X,Y axes and table surface.
  • Specifications
  • Accessories
MODEL PK-1½GRM-KV
Table 1067 x 230 or 1245 x 230 mm
Max. Table Load (kgs) 250kgs
T-Slot (width x number x distance) 16 x 3 x 63.5
Rapid Feed Rate 890 mm/min
TRAVEL
Longitudinal 680 mm
Cross 355 mm
Vertical 406 mm
Spindle Travel 127 mm
Arm Travel 460 mm
SPINDLE
Taper R8 or NT30#
Spindle Nose to Table Surface 80-450 mm
Spindle Center to Column 120-575 mm
Variable Speed - Variable 70 - 3800 RPM
Quill Feeds Rer. Rev. of Spindle 0.04 - 0.08 - 0.15 mm
Dia. of Quill Ø 86
Main Motor 1.5KW 3PH or 2.2 KW 3PH
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 950 Kgs

All Specifications And Designs Are Subject To Change Without Notice.

Standard Accessories
  • Drawbar
  • Way Chip Protector
  • Tool Box with Tools
Options
  • Cooling Pump System (Opt.)
  • Chip Tray (Opt.)
  • Halogen Worklight (Opt.)
  • Power Feed for X Axis (Opt.)
  • Power Feed for Y Axis (Opt.)
  • Rapid Motor for Knee Elevation (Opt.)
  • Electric control box with operation panel (Opt.)
