LV series
LV159/LV179/LV209

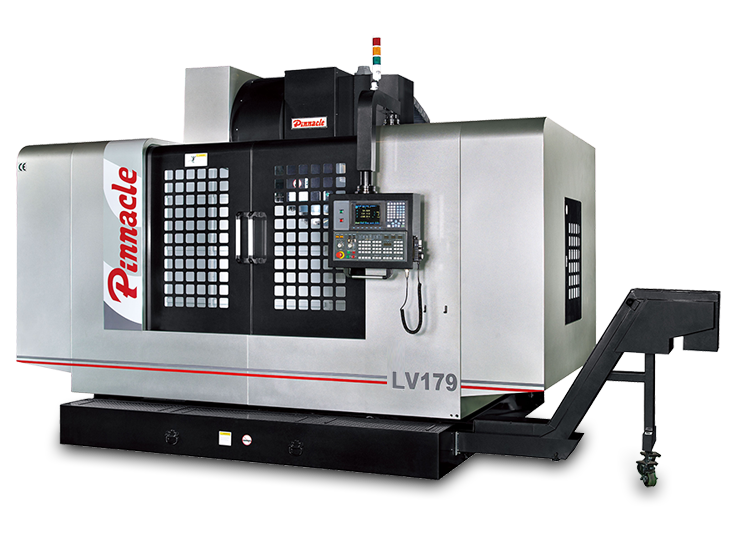

LV's Designed for Extra Value and Built for Optimum Performance
Linear Way Series
Now you can gWhen jobs call for highly efficient machining and when outstanding accuracy is critical, a Pinnacle linear way series vertical machining center is the perfect solution. The three axes move on linear guideways that minimize friction while providing high accuracy of positioning and repeatability. This series are not only suitable for larg-range production line application. It is also ideal for smaller factories and machine shops. If you are serious about increasing machining productivity and profits, the Pinnacle linear way series LV can really help you.
Features
- 1500 (1700, 2000) X 900 x 850 mm Travel
- Rapid Feedrate 24/24/16 m/min
- 20/25HP Spindle Motor
- ISO50 Spindle Taper / (ISO40 Spindle Taper)
- X,Y Axis Linear Way
- Z Axis Box Way (Linear Way is Option)
- 4 Slideway on Base
- Features
- Specifications
- Accessories
- Quality Inspections
- Options

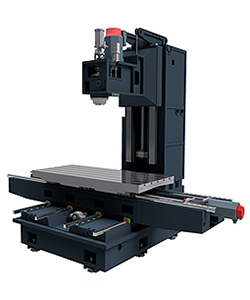

Rugged Construction Assures Optimum Rigidity and Stability.
The major structural parts are manufactured from high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
Roller guideway on the three axes ensure smooth movement.
Three axes are equipped with class C3 and 50mm diameter precision ball screws.
Counter-balance weight moves on a guide shaft for added stability and straightness accuracy.
China Patent No.: 416211
COUNTER WEIGHT BALANCE SYSTEM
Exclusively designed counter weight balance system. The counter-balance weight moves on a guide shaft to assure movement straightness accuracy. There is no vibration in the forward/backwards and in the right/left directions. This creates superior workpiece surface accuracy to meet various mold machining requirements. Patented in Taiwan and China.
Taiwan Patent No.: 177230
RIGID, PRECISION SPINDLE
ASSURES HIGH QUALITY MACHINING
- Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.
- Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life.
- The spindle is a cartridge-type.
- Choice of various spindle speeds - 8,000, 10,000 and 12,000 rpm.
- The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.
Chips Flushing Nozzles
Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.
Couplings
Directly connected with ball screw and AC servo motors, the high precision flexible couplings offer the best rigidity and keeps the accuracy of axial linear assembly under high speed movement.
Automatic Lubrication System
The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.
Control System
The centralized control panel employs a touch sensing screen for user-friendly operation. The humanized designed control panel has an elegant appearance. Various controllers can be chose - Mitsubishi, Heidenhain, Fanuc and Siemens.
Splash Guard
The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment.
| MODEL | LV159 | LV179 | LV209 | |||
|---|---|---|---|---|---|---|
| TABLE | ||||||
| TABLE SIZE (mm) | 1700 x 850 | 1900 x 850 | 2200 x 850 | |||
| TRAVEL RANGES (X/Y/Z mm) | 1500 / 900 / 850 | 1700 / 900 / x 850 | 2000 / 900 / x 850 | |||
| MAX. TABLE LOAD (kgs) | 2000 | 2500 | 3000 | |||
| SPINDLE NOSE TO TABLE SURFACE (mm) | 100 ~ 950 | 100 ~ 950 | 100 ~ 950 | |||
| T-SLOT (Width x Distance x Number mm) | 18 x 150 x 5 | 18 x 150 x 5 | 18 x 150 x 5 | |||
| SPINDLE | ||||||
| TOOL SHANK & PULL STUD | ISO40 | ISO50 | ||||
| SPINDLE INNER DIAMETER (mm) | Ø70 | Ø100 | ||||
| SPINDLE CENTER TO COLUMN (mm) | 950 | 950 | ||||
| SPINDLE SPEED (rpm) Belt | 40 ~ 8000(10000/12000) | 40 ~ 6000(8000) | ||||
| SPINDLE SPEED (rpm) Gear | L40~2000,H2001~8000 | L40~1500,H1501~6000 | ||||
| Spindle Speed (rpm) Direct-Drive | 10000 / 12000 / 15000 | 10000 | ||||
| DRAW BAR FORCE (kgf) | 950 | 2000 | ||||
| MAIN MOTOR (con/30min kw) | 11 / 15 | 15 / 18.5 | (S1/S6 - 40%)||||
| FEED RATE | ||||||
| RAPID FEED RATE (X/Y/Z m/min) | 24 / 24 / 16 | 24 / 24 / 16 | 18 / 18 / 16 | |||
| FEED RATE (X/Y/Z mm/min) | 10000 | 10000 | 10000 | |||
| AXIS SERVO MOTOR | ||||||
| MITSUBISHI (Kw) | HF703 (7.0) | HF703 (7.0) | HF703 (7.0) | |||
| FANUC (Kw) | α22/3000i (4.0) | α30/4000i (7.0) | α30/4000i (7.0) | |||
| SIEMENS (Kw) | 1FK7105 (8.2) | 1FK7105 (8.2) | 1FK7105 (8.2) | |||
| FAGOR (Kw) | FXM 75.20A (7.0) | FXM 75.20A (7.0) | FXM 75.20A (7.0) | |||
| HEIDENHAIN (Kw) | QSY190C (7.2) | QSY190C (7.2) | QSY190C (9.6) | |||
| AUTO TOOL CHANGER | ||||||
| MAG TYPE | DISK | DISK / CHAIN | ||||
| CAM TYPE | DAUL ARM | DAUL ARM | ||||
| TOOL SELECTION (Bi-direction) | RANDOM | RANDOM | ||||
| TOOL STORAGE CAPACITY (pcs) | 24 | 24 / 32 | ||||
| MAX. TOOL DIAMETER (mm) | Ø90 | Ø105 / Ø127 / Ø127 | ||||
| MAX. TOOL LENGTH, WEIGHT | 250mm, 8kgs | 350mm, 15kgs | ||||
| MISCELLANEOUS | ||||||
| AIR REQUIREMENT (Kg/cm²) | 6 | 6 | 6 | |||
| VOLTAGE | 220V, 3Ph,50/60Hz | 220V, 3Ph,50/60Hz | 220V, 3Ph,50/60Hz | |||
| POWER REQUIREMENT (KVA) | 40 | 40 | 40 | |||
| COOLANT TANK CAPACITY (L) | 700 | 700 | 700 | |||
| MACHINE WEIGHT (Kgs) | 14000 | 15000 | 16000 | |||
| MACHINE HEIGH (mm) | 3200 | 3200 | 3200 | |||
| FLOOR SPACE (LxW mm) | 4050 x 2900 | 4450 x 2900 | 5000 x 2900 | |||

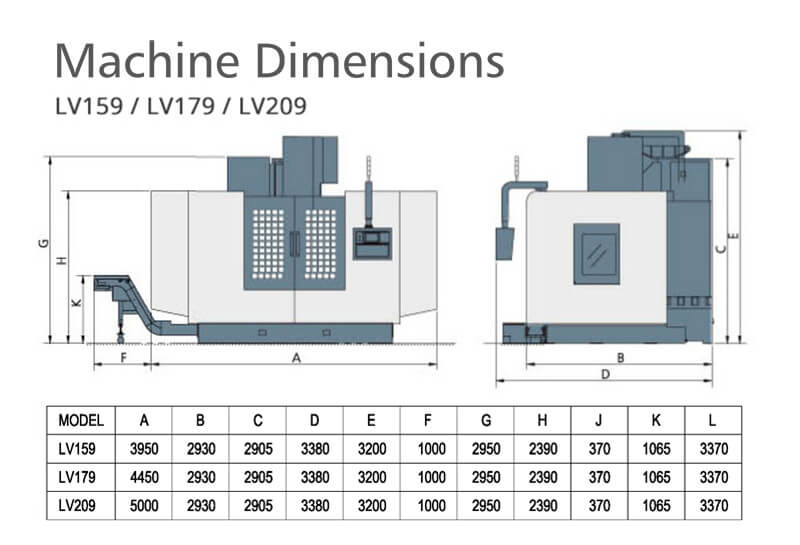

All Specifications And Designs Are Subject To Change Without Notice.
Accessories
- Air blast through spindle
- Air blast for workpiece (nose)
- Coolant flushing system
- 3 axes telescopic covers
- Full splash guard
- Centralized automatic lubrication system
- Working lamp
- Operation status light
- Cooling system
- Air gun and water spray-gun
- MPG handwheel
- Heat exchanger
- RS-232 Interface
- Rigid tapping
- Spindle oil cooler
- Adjusting tools and box
- Leveling bolts and pads
- Operation and programming manual
Control System
- MITSUBISHI M80 / M830
- FANUC 0i-MF / 31i-MB
- HEIDENHAIN TNC620 / TNC640
- SIEMENS 828D / 840D
- FAGOR 8055i Plus / 8060FL / 8060
Quality Through Precision Inspections
Each Pinnacle machine is subject to dynamic and static accuracy tests.
Pinnacle machine accuracy meets VDI 3441, ISO 10791, JIS B6336 and ASMEB5 standards.
Laser Inspection
Ball Bar Inspection
Right Angle Test On X And Y Axes
Dynamic Vibration
Noise Inspection
Three-dimensional coordinate measurement
ARM TYPE ATC
The 24-tool arm type magazine is activated by electric motor transmitted by U-cam mechanism, featured with the fastest tool change speed and it bi-directional random tool selection. (option)
COOLANT THROUGH SPINDLE
Coolant circulates through spindle offer a direct cooling effect on tools, removing heat that occurs during machining. Combining with filter tank system. (option)
20 BAR HI-PRESSURE PUMP AND TANK
20μm filter and 600L capacity to assure CTS system offers the highest efficacy. (option)
CHIP CONVEYOR
Chip conveyor device in the front side of machine removes chips efficiently. (option)
