PK series

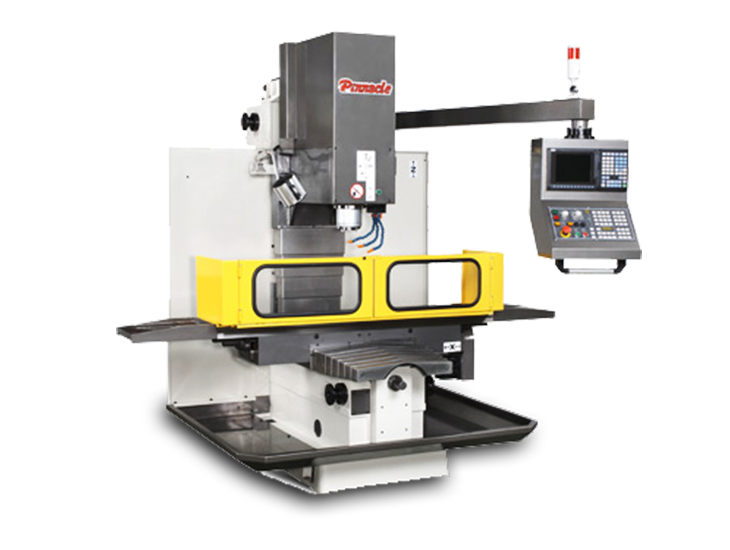

B3KCNC
Features
- BT40 Spindle, 8000 RPM.
- High rigid precision spindle driven by 5.5kw powerful motor.
- 60" x 12" working table with ground T-slots.
- Excellent for heavy workpieces.
- 1020 x 460 x 500 mm Travel.
- Rapid feed rate 10 / 10 / 10.
- Specifications
- Accessories
| MODEL | B3KCNC (CNC Bed Type) |
|---|---|
| TABLE | |
| Controller | M70 |

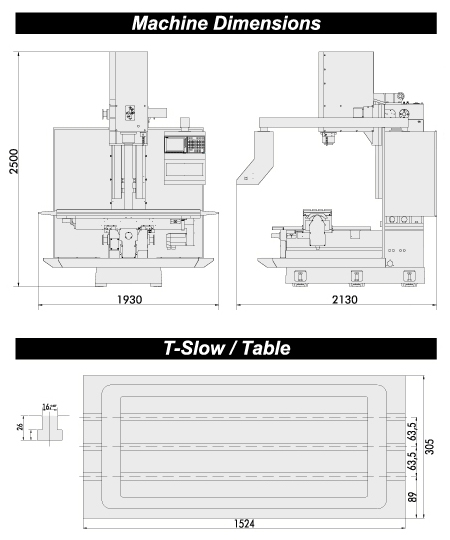

| Table Size (mm) | 1524 x 305mm |
| Travel Ranges (X/Y/Z mm) | 1020 x 460 x 500mm |
| Max. Table Load (Kgs) | 300 Kgs |
| Spindle Nose to Table Surface (mm) | 150 - 660 mm |
| T-Slot (WxDxN mm) | 16 x 63.5 x 3 |
| SPINDLE | |
| Spindle Speed (rpm) | 8000 rpm |
| Main Motor (kW) | 5.5 kw |
| Spindle Shank & Pull Stud | BT40 |
| AXES | |
| Rapid Feed Rate (X/Y/Z m/min) | 10 m/min |
| Feed Rate (mm/min) | 10 m/min |
| Servomotor X/Y/Z kw | 1.5 kw |
| AUTO TOOL CHANGER | |
| ATC capacity | 16/20 |
| Max. Tool Diameter (mm) | 90 mm |
| Max. Tool Length | 250 mm |
| Max. Tool Weight | 8 kg |
| MISCELLANEOUS | |
| Coolant Tank Capacity (L) | 90 L |
| Machine Weight (Kgs) | 2700 kgs |
All Specifications And Designs Are Subject To Change Without Notice.
