PK series

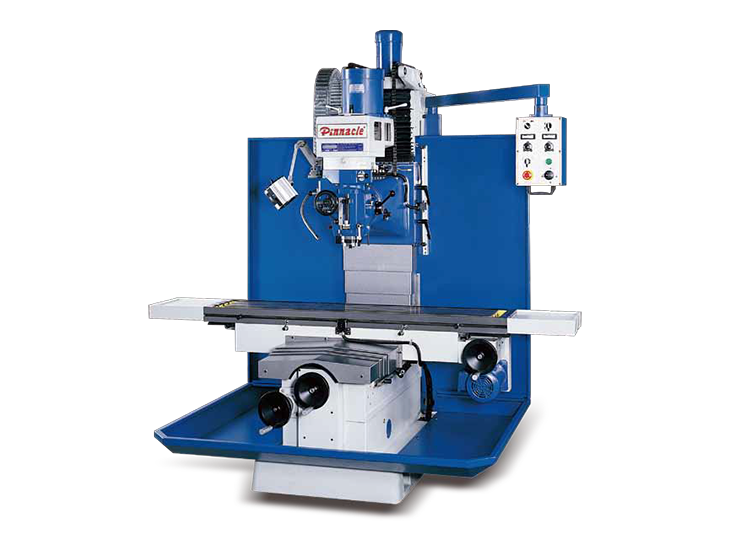

PK-B3K
Features
- X, Y, Z axes driven by inverter motor.
- NT #40 Spindle taper.
- 90° swivel angle for head.
- High rigid precision spindle driven by 5 HP powerful motor.
- 60" x 12" Working table with ground T - slots.
- Excellent for heavy workpieces.
- Specifications
- Accessories
| MODEL | PK-B3K | ||
|---|---|---|---|
| Table | 1524x 305mm | ||
| Max. Table Load (kgs) | 500kgs | ||
| TRAVEL | |||
| Longitudinal | 1020 mm | ||
| Cross | 510mm | ||
| Vertical | 510mm | ||
| Spindle Travel | 127mm | ||
| SPINDLE | |||
| Taper | NT40# | ||
| Variable Speed | 75-4200 RPM | ||
| Spindle Nose to Table Surface | 160-670mm | ||
| 16-speed-range transmission (optional) | Low Range | Low | 60, 95, 150, 225 |
| High | 535, 825, 1320, 1930 | ||
| High Range | Low | 120, 195, 305, 450 | |
| High | 1055, 1640, 2620, 3820 | ||
| Infinitely variable speed transmission (optional) | 75 - 3800 RPM | ||
| Quill Feeds Per Rev. of Spindle | 0.045, 0.086, 0.142 mm | ||
| Main Motor for Inverting | 3.7KW, 3PH | ||
| Swivel Angle to Right & Left | 90° | ||
| Approximate Net Weight | 2350 Kgs | ||
| Floor Space ( L x D x H ) | 2179 x 1690 x 2350 mm | ||
All Specifications And Designs Are Subject To Change Without Notice.
