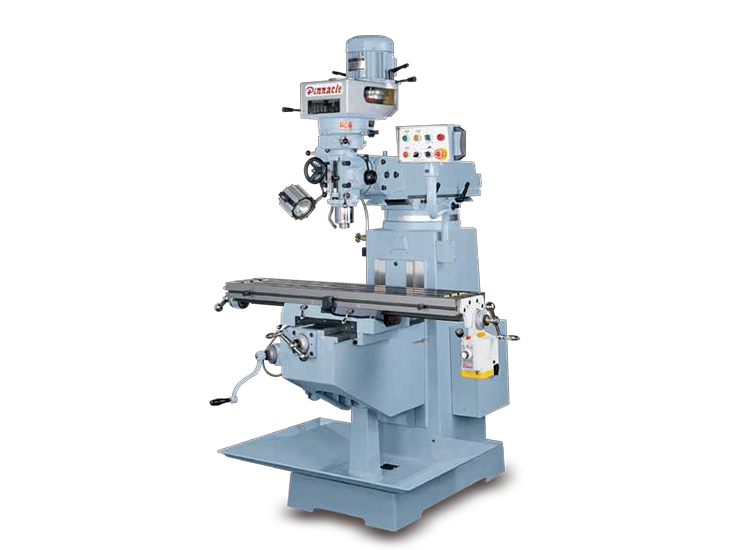

PK-GRSM-B

PK-GRSM-B

Features

  • 16 - speed range milling head.
  • NT30# / R8 spindle taper.
  • 3HP powerful motor.
  • Square slideways on knee.
  • Extra wide table working area 50" x 10".
  • Hardened and ground X,Y axes and table surface.
  • Specifications
  • Accessories
MODEL PK-GRSM-B
Table 1270 x 254mm
Max. Table Load (kgs) 300kgs
T-Slot (width x number x distance) 16 x 3 x 63.5
Rapid Feed Rate 890 mm/min
TRAVEL
Longitudinal 800 mm
Cross 380 mm
Vertical 380 mm
Spindle Travel 127 mm
Arm Travel 520 mm
SPINDLE
Taper R8 or NT30#
Spindle Nose to Table Surface 96-500 mm
Spindle Center to Column 130-690 mm
Spindle Spindle Low Range Low 60, 95, 150, 225
High 535, 825, 1320, 1930
High Range Low 120, 195, 305, 450
High 1055, 1640, 2620, 3820
Quill Feeds Per. Rev. of Spindle 0.04, 0.08, 0.15 MM
Dia. of Quill Ø 86
Main Motor 2.2 KW, 3PH or 3.7 KW, 3PH
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 1100 Kgs

All Specifications And Designs Are Subject To Change Without Notice.

Standard Accessories
  • Drawbar
  • Way Chip Protector
  • Tool Box with Tools
Options
  • Cooling Pump System (Opt.)
  • Chip Tray (Opt.)
  • Halogen Worklight (Opt.)
  • Power Feed for X Axis (Opt.)
  • Power Feed for Y Axis (Opt.)
  • Rapid Motor for Knee Elevation (Opt.)
  • Electric control box with operation panel (Opt.)
