PK series

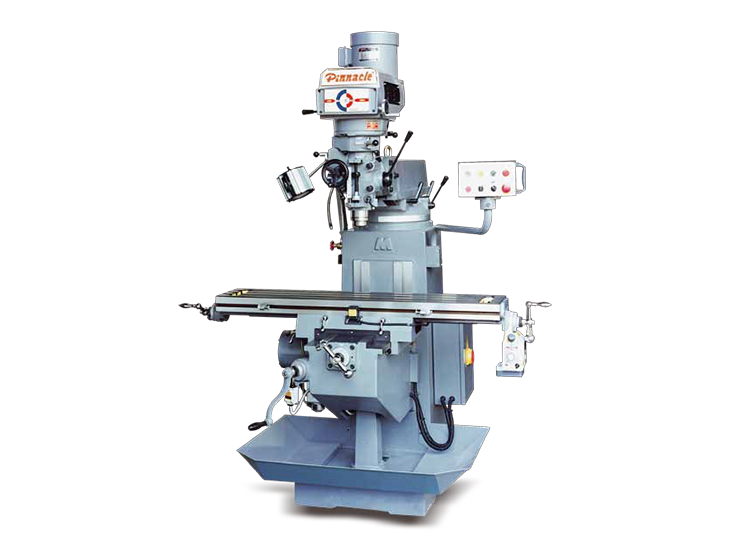

PK-GRSM-V
Features
- 3HP variable speed head.
- NT30# / R8 spindle taper.
- 3HP powerful motor.
- Square slideways on knee.
- Extra wide table working area 50" x 10".
- Hardened and ground X,Y axes and table surface.
- Specifications
- Accessories
| MODEL | PK-GRSM-V |
|---|---|
| Table | 1270 x 254mm |
| Max. Table Load (kgs) | 300kgs |
| T-Slot (width x number x distance) | 16 x 3 x 63.5 |
| Rapid Feed Rate | 890 mm/min |
| TRAVEL | |
| Longitudinal | 800 mm |
| Cross | 380 mm |
| Vertical | 380 mm |
| Spindle Travel | 127 mm |
| Arm Travel | 520 mm |
| SPINDLE | |
| Taper | R8 or NT30# |
| Spindle Nose to Table Surface | 96-500 mm |
| Spindle Center to Column | 130-690 mm |
| Variable Speed | 75-3800 R.P.M. |
| Quill Feeds Rer. Rev. of Spindle | 0.04 - 0.08 - 0.15 mm |
| Dia. of Quill | Ø 86 |
| Main Motor | 2.2 KW 3PH or 3.7 KW 3PH |
| Swivel Angle to Right & Left | 90° |
| Swivel Angle to Front & Back | 45° |
| Approximate Net Weight | 1100 Kgs |
All Specifications And Designs Are Subject To Change Without Notice.
