QV series

QV159/QV179/QV209
QV's Designed for Extra Value and Built for Optimum Performance

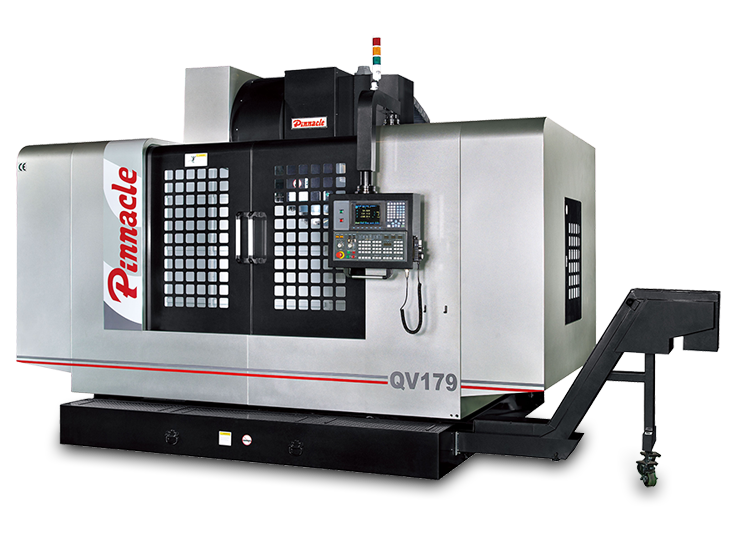

QV179

Box Way Series

Now you can get the right VMC's with the right features for extra heavy-duty machining, superior stability and excellent rigidity. Pinnacle box way series VMC's are quality constructed throughout for maximum performance dependability - year after year. If you expect a VMC that will provide higher machining efficiency to reduce production costs, then consider placing a dependable, heavy-duty Pinnacle VMC in your production line.

Features

  • 1500 (1700, 2000) X 900 x 850 mm Travel
  • Rapid Feedrate 16/16/12 m/min
  • 25/20HP Spindle Motor
  • ISO50 Spindle Taper / (ISO40 Spindle Taper)
  • X, Y & Z Axis Square Way
  • 4 Slideway on Base
  • Features
  • Specifications
  • Accessories
  • Quality Inspections
  • Options
  • Video

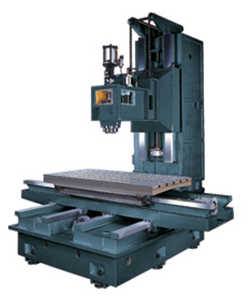

Rugged Construction Assures Optimum Rigidity and Stability.

The major structural parts are manufactured from high quality Meehanite cast iron (FC-30), hardened to over HB190 and tempered to relieve stress.

Box ways on the three axes. Way surfaces are hardened to over HRC50 with over 2 mm depth.

Three axes are equipped with class C3 and 40mm (QV117 / QV137 / QV147) and 50mm (QV159 / QV179 / QV209) diameter precision ball screws.

Counter-balance weight moves on a guide shaft for added stability and straightness accuracy.

China Patent No.: 416211

COUNTER WEIGHT BALANCE SYSTEM

Exclusively designed counter weight balance system. The counter-balance weight moves on a guide shaft to assure movement straightness accuracy. There is no vibration in the forward/backwards and in the right/left directions. This creates superior workpiece surface accuracy to meet various mold machining requirements. Patented in Taiwan and China.

Taiwan Patent No.: 177230

RIGID, PRECISION SPINDLE

ASSURES HIGH QUALITY MACHINING
  • Supported by superior precision P4 class bearings, the spindle provides an extra wide range of machining capacity and high speed.
  • Floating unclamping system assures tool unclamping force will not transmit to the spindle bearings. It provides stable tool clamping and unclamping with the spindle and extends the spindle bearings' life.
  • The spindle is a cartridge-type.
  • Choice of various spindle speeds - 6,000 rpm (ISO50, Belt Type/Gear Type), 8,000 rpm (ISO40/ISO50, Belt Type) 10,000 rpm (ISO40, Belt Type), 12,000 rpm (ISO40, Belt Type).
  • The circulating oil cooling system on the spindle head prevents thermal expansion and offers the best precision machining environment.
Chips Flushing Nozzles

Coolant flushing nozzles on rear inner wall of guard prevent jam of chips during operation.

Couplings

Directly connected with ball screw and AC servo motors, the high precision flexible couplings offer the best rigidity and keeps the accuracy of axial linear assembly under high speed movement.

Automatic Lubrication System

The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.

Control System

The centralized control panel employs a touch sensing screen for user-friendly operation. The humanized designed control panel has an elegant appearance. Various controllers can be chose - Mitsubishi, Heidenhain, Fanuc and Siemens.

Splash Guard

The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment.

MODEL QV159 QV179 QV209
TABLE
Table Size (mm) 1700 x 850 2000 x 850 2200 x 850
Travel Ranges (X x Y x Z mm) 1500 / 900 / 850 1700 / 900 / x 850 2000 / 900 / x 850
Max. Table Load (kgs) 2000 2500 3000
Spindle Nose to Table Surface (mm) 150 ~ 1000 150 ~ 1000 150 ~ 1000
T-slot (Width x Distance x Number mm) 18 x 150 x 5 18 x 150 x 5 18 x 150 x 5
SPINDLE
Tool Shank & Pull Stud ISO40 ISO50
Spindle Inner Diameter (mm) Ø70 Ø100
Spindle Center to Column (mm) 950 950
Spindle Speed (rpm) Belt 40 - 8000 40 - 6000 (8000)
Spindle Speed (rpm) Gear L40 ~ 1750, H1751 ~ 8000 L40 ~ 1500, H1501 ~ 6000
Draw Bar Force (kgf) 950 2000
Main Motor (con/30 min Kw) 7.5 / 11 15 / 18.5 15 / 18.5
FEED RATE
Rapid Feed Rate (X/Y/Z m/min) 16 / 16 / 12 16 / 16 / 12 16 / 16 / 12
Feed Rate (X/Y/Z/ mm/min) 8000 8000 8000
AXIS SERVO MOTOR
Mitsubishi  (Kw) HA300 (4.5) HA700 (7.0) HA700 (7.0)
Fanuc (Kw) *22/3000i (4.0) *30/3000i (7.0) *30/3000i (7.0)
Siemens (Kw) 1FK7083 (4.17) 1FK7083 (4.17) 1FK7083 (4.17)
Fagor (Kw) FKM 64.30 A FKM 64.30 A FKM 64.30 A
Heidenhain (Kw) QSY155F (56.03) QSY190D (9.6) QSY190D (9.6)
AUTO TOOL CHANGER ISO40 ISO50
Mag Type PLATE / DISK DISK / CHAIN
Cam Type GENOVA / DAUL ARM DAUL ARM
Tool Selection (Bi-direction) ABSOLUTE / RANDOM RANDOM
Tool Storage Capacity (PCs) 20 / 24 24 / 32
Max. Tool Diameter (mm) Ø100 / Ø90 Ø105 / Ø127
Max. Tool Length (mm), Weight (kgs) 250 mm, 8 kgs 350 mm, 15 kgs
MISCELLANEOUS
Air Requirement (Kg/cm2) 6 6 6
Voltage 220V, 3Ph, 50 / 60Hz 220V, 3Ph, 50 / 60Hz 220V, 3Ph, 50 / 60Hz
Power Requirement (KVA) 40 40 40
Coolant Tank Capacity (L) 700 700 700
Machine Weight (Kgs) 14000 15000 16000
Machine Height (mm) 3200 3200 3200

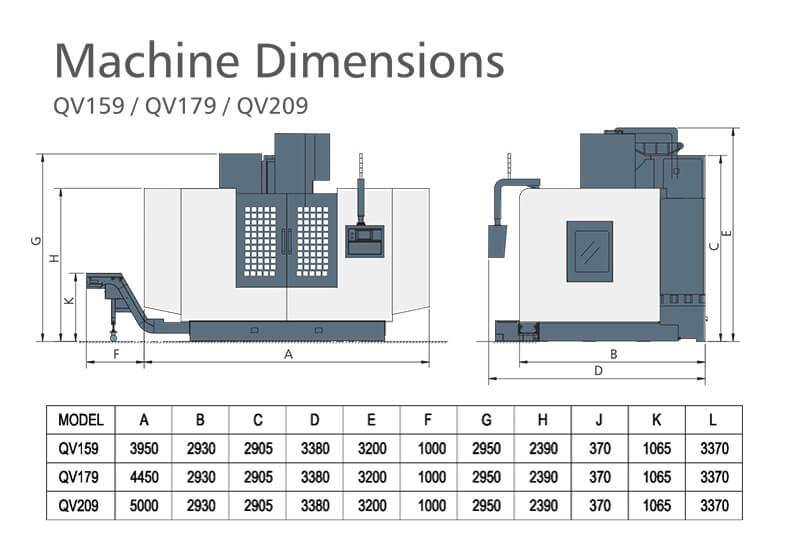

Floor Space (L x W mm) 3950 x 2900 4450 x 2900 5000 x 2900

All Specifications And Designs Are Subject To Change Without Notice.

Accessories
  • Air blast through spindle
  • Air blast for workpiece (nose)
  • Coolant flushing system
  • 3 axes telescopic covers
  • Full splash guard
  • Centralized automatic lubrication system
  • Working lamp
  • Operation status light
  • Cooling system
  • Air gun and water spray-gun
  • MPG handwheel
  • Heat exchanger
  • RS-232 Interface
  • Rigid tapping
  • Spindle oil cooler
  • Adjusting tools and box
  • Leveling bolts and pads
  • Operation and programming manual
Control System
  • MITSUBISHI M80 / M830
  • FANUC 0i-MF / 31i-MB
  • HEIDENHAIN TNC620 / TNC640
  • SIEMENS 828D / 840D
  • FAGOR 8055i Plus / 8060FL / 8060
Quality Through Precision Inspections

Each Pinnacle machine is subject to dynamic and static accuracy tests.

Pinnacle machine accuracy meets VDI 3441, ISO 10791, JIS B6336 and ASMEB5 standards.

Laser Inspection
Ball Bar Inspection
Right Angle Test On X And Y Axes
Dynamic Vibration
Noise Inspection
Three-dimensional coordinate measurement
COOLANT THROUGH SPINDLE

Coolant circulates through spindle offer a direct cooling effect on tools, removing heat that occurs during machining. Combining with filter tank system. (option)

CHAIN-TYPE ATC

The chain-type ATC is driven by a cam system and features rapid and precise locating, quick tool change and stable operations.

The chain-type ATC features bi-directional random tool selection. (option)

20 BAR HI-PRESSURE PUMP AND TANK

20μm filter and 600L capacity to assure CTS system offers the highest efficacy. (option)

CHIP CONVEYOR

Chip conveyor device in the front side of machine removes chips efficiently. (option)
