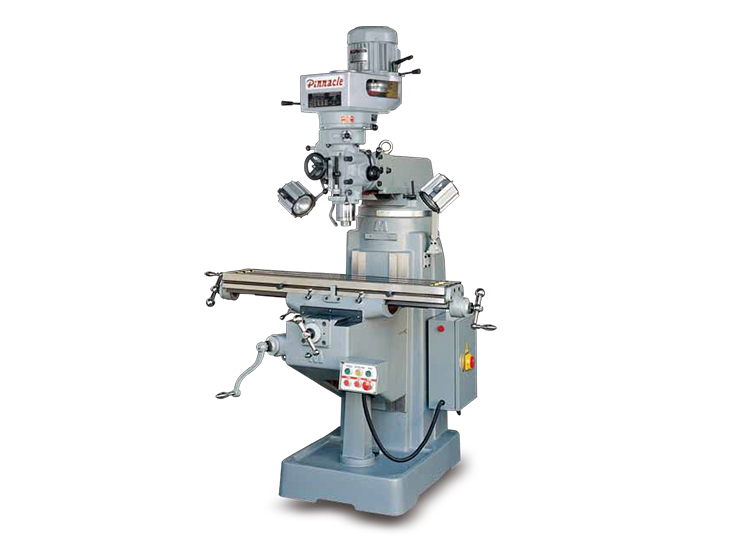

PK-1½GRM-KB

PK-1½GRM-KB

Features

  • 16 - speed range milling head.
  • NT30# / R8 spindle taper.
  • Step pulley head with 2HP motor.
  • Dovetail slideways.
  • Hardened and ground X,Y axes and table surface.
  • Specifications
  • Accessories
MODEL PK-1½GRM-KB
Table 1067 x 230 or 1245 x 230 mm
Max. Table Load (kgs) 250kgs
T-Slot (width x number x distance) 16 x 3 x 63.5
Rapid Feed Rate 890 mm/min
TRAVEL
Longitudinal 680 mm
Cross 355 mm
Vertical 406 mm
Spindle Travel 127 mm
Arm Travel 460 mm
SPINDLE
Taper R8 or NT30#
Spindle Nose to Table Surface 80-450 mm
Spindle Center to Column 120-575 mm
16-speed-range spindle Low Range Low 60, 95, 150, 225
High 535, 825, 1320, 1930
High Range Low 120, 195, 305, 450
High 1055, 1640, 2620, 3820
Quill Feeds PER. REV. of Spindle 0.04 - 0.08 - 0.15 mm
Dia. of Quill Ø 86
Main Motor 1.5KW 3PH or 2.2 KW 3PH
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 950 kgs

All Specifications And Designs Are Subject To Change Without Notice.

Standard Accessories
  • Drawbar
  • Way Chip Protector
  • Tool Box with Tools
Options
  • Cooling Pump System (Opt.)
  • Chip Tray (Opt.)
  • Halogen Worklight (Opt.)
  • Power Feed for X Axis (Opt.)
  • Power Feed for Y Axis (Opt.)
  • Rapid Motor for Knee Elevation (Opt.)
  • Electric control box with operation panel (Opt.)
