AX series

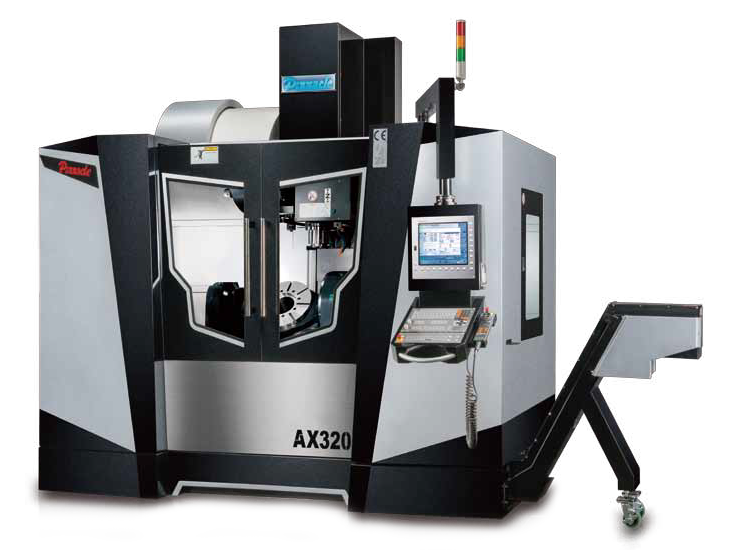

AX320
High-Tech Expertise in 5-axis Machining

AX320

5 - AXIS MACHINING CENTER

The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. The spindle head elevation employs a pneumatic type balance system to minimize the spindle head vibration during moving.

The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy.

Pinnacle AX320/ AX450 are proven to be super machines for high efficiency and accuracy.

Features

  • 660 x 610 x 610 mm Travel
  • A Axis Tilt 150° (-120°/+30°)
  • C Axis Rotary 360°
  • Rapid Feedrate 30/30/24
  • 9/12 Kw Spindle Motor
  • ISO40 Spindle Taper
  • X, Y & Z Axis Linear Way
  • Rigid, Stable, Accurate
  • 5 Axes Rotary Table
  • Quality & Efficiency
  • Specifications
  • Accessories
  • Video

Rigid, Stable, Accurate

Ruggedly Constructed Throughout to Provtde Lifetime Accuracy Year After Year
  • The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
  • Roller type linear ways on X, Y, Z axis increased stability.
  • X, Y, Z axis are transmitted with class C3, Ø40mm ball screws.
Hollow Ball Screw With Cooling System

Oil cooling through ball screws on X, Y, Z axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse.

Pneumatic Balance System

The Z-axis is pneumatic counter-balanced via high response pneumatic cylinders. Plus an air reservoir tank to boost the balancing performance, ensuring fast and stable Z-axis movement, giving high surface finish.

Cooling System To Spindle

The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy.

  • Rotary Table diameter Ø320 / Ø450mm
  • Table rotation and tilting are driven by servo motor
  • Rositioning accuracy, A/C-axis: 15"/10"
  • Repeatibility accuracy, A/C-axis: 10"/8"

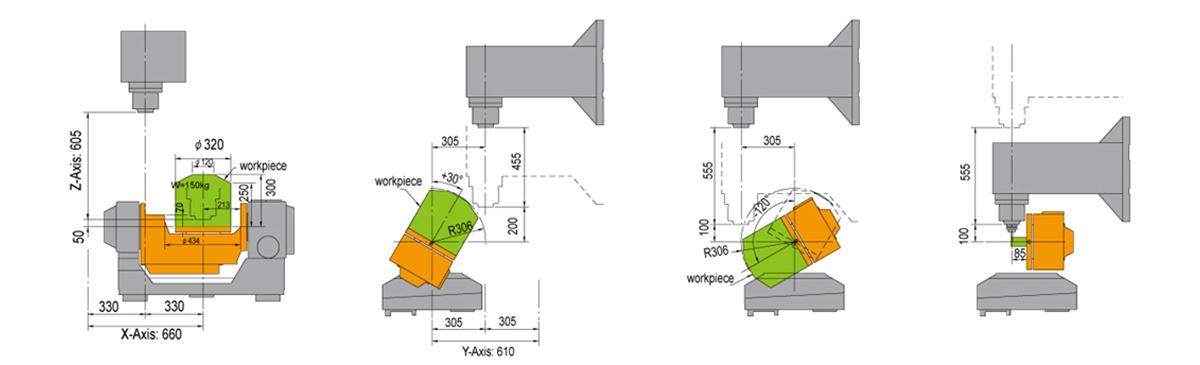

WORKING CAPACITY AX320
Perfect Accessories for Outstanding Performance
A/C Axes Inspection
Right Angle Test On X And Y Axes
Noise Inspection
Arm Type Atc
Couplings
Coolant Through Spindle
Choice Of Heidenhain And Siemens Cnc Control
20 Bar Hi-Pressure Pump And Tank
20 Bar Hi-Pressure Pump + Tank W/Paper Filter
Chips Flushing Nozzles
CHIP CONVEYOR
Screw
Chain
Scraping
  SCREW CHAIN SCRAPING
Steel O X O
Casting Iron X O X
Aluminum X X O
Copper X X O
Mixture X O X
Not Iron Material X O X
Ball Bar Diagnostics
AUTOMATIC LUBRICATION SYSTEM

The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.

SPLASH GUARD

The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment.

MODEL AX320
TABLE
Table Size (mm) Ø320
Travel Ranges (X x Y x Z mm) 660 x 610 x 610
T Slot Size (Size x deg ) 12 x 90
Max. Table Load (0°/90°) 150/150
Max. Workpiece Size (W x H mm) Ø420x 300
Diameter of Table Hole (mm) Ø50
Spindle Nose to Table Surface (mm) 50~605
A  Axis, Tilt (deg)/(0.001°) 150°(-120°/+30°)
C Axis, Rotary (deg)/(0.001°) 360°
SPINDLE
Tool Shank & Pull Stud ISO40
Spindle Inner Diameter (mm) Ø70
Spindle Speed (rpm) Direct drive 10000 (12000/15000)
Spindle Speed (rpm) Built-in 18000 (20000/24000)
Main Motor (con/30 min Kw) 9/12
AXIS SERVO MOTOR
Rapid Feed Rate (X/Y/Z m/min) 30/30/24
Feed Rate (X/Y/Z/ m/min) 10
Feed Rate (A/C rev/min) 5.5/11.5
X Axis Rated Torque (Nm) 10
Y Axis Rated Torque (Nm) 10
Z Axis Rated Torque (Nm) 10
A Axis Rated Torque (Nm) 5
C Axis Rated Torque (Nm) 3.8
AUTO TOOL CHANGER
ATC Type DISK - 24,30(Chain-40)
Cam Type ARM
Tool Selection (Bi-direction) RANDOM
Tool Storage Capacity (PCs) 24 (30,40)
Max. Tool Diameter (mm) 90 (76)
Max. Tool Length 300
Max. Tool Weight 8
MISCELLANEOUS
Air Requirement (Kg/cm2) 6
Hydraulic Requirement (Kg/cm2, L) 40, 30L
Voltage 380
Power Requirement (KVA) 40
Coolant Tank Capacity (L) 300
Machine Weight (KGs) 6500
Machine Height (mm) 2900
Floor Space (L x W mm) 2660 x 2230
Packing Size (L x W x H mm) 2660 x 2230 x 2560

All Specifications And Designs Are Subject To Change Without Notice.

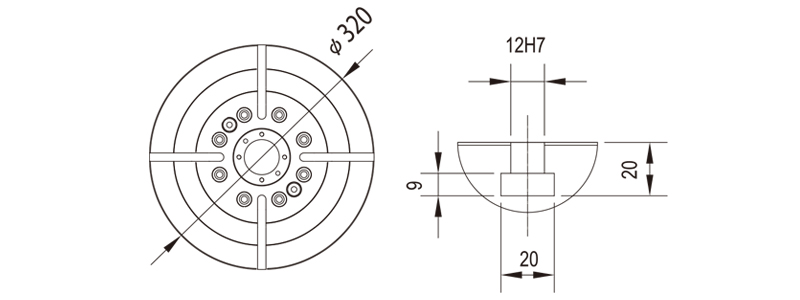

TABLE SIZE

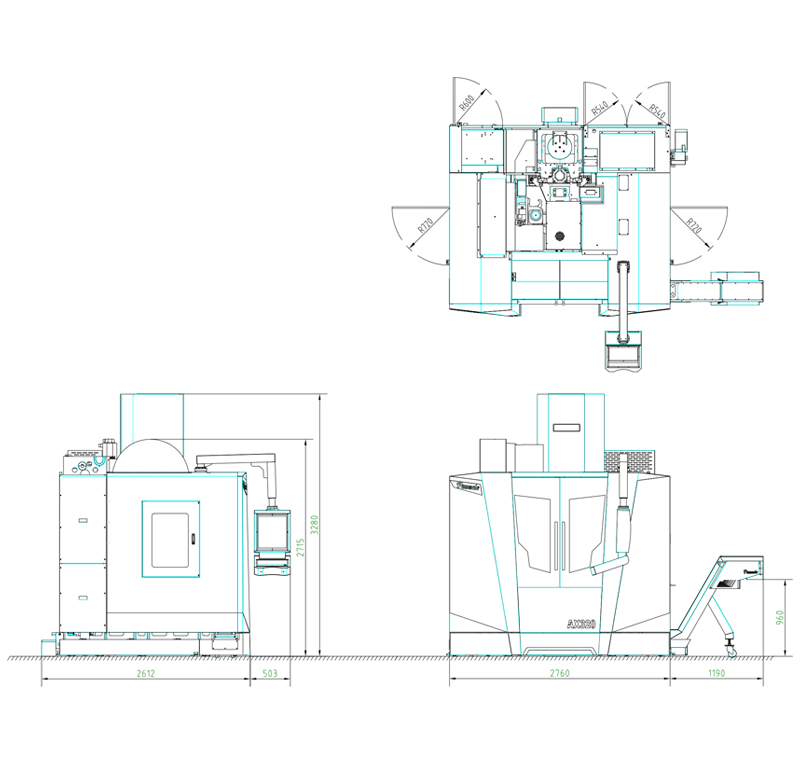

FLOOR SPACE
Accessories
  • Air blast through spindle
  • Air blast for workpiece (nose)
  • Coolant flushing system
  • 3 axes telescopic covers
  • Full splash guard
  • Automatic lubrication system
  • Working lamp
  • Operation status light
  • Arm type 24-tool ATC
  • Z axis pneumatic balance system
  • Cooling System
  • Air gun / water gun
  • MPG handwheel
  • Heat exchanger
  • RS-232 Interface
  • Rigid tapping
  • Spindle oil cooler
  • Hollow ball screws with cooling system
  • A-axis Rotary Encoder
  • C-axis Rotary Encoder
  • Adjusting Tools and box
  • Leveling bolts and pads
  • Operation and programming manual
Control System
  • Transformer
  • Chain type chip conveyor
  • Coolant through Spindle
  • 3 Axes Linear Scales
  • Auto tool length measurement
  • Auto workpiece measurement
  • FANUC Controller
  • MITSUBISHI Controller
  • SIEMENS Controller
