High-Tech Expertise in 5-axis Machining
5 - AXIS MACHINING CENTER
The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. The spindle head elevation employs a pneumatic type balance system to minimize the spindle head vibration during moving.
The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy.

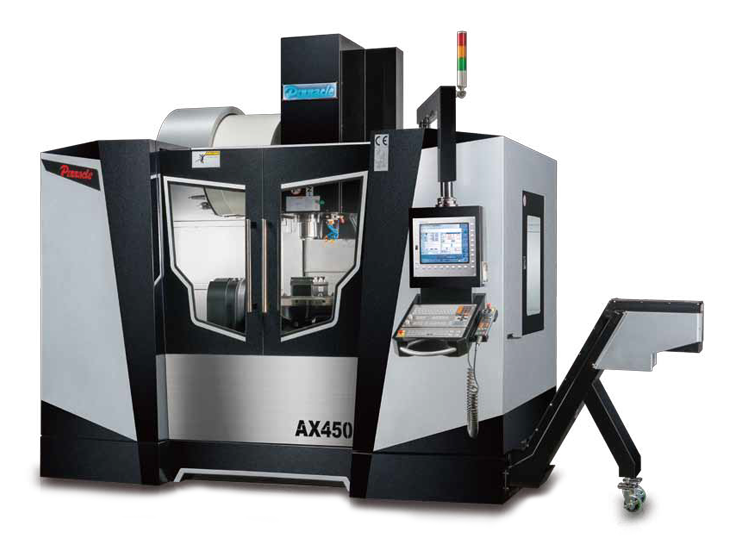

Pinnacle AX320/ AX450 are proven to be super machines for high efficiency and accuracy.
- 760 x 610 x 560 mm Travel
- A Axis Tilt 220° (±110°)
- C Axis Rotary 360°
- Rapid Feedrate 30/30/24
- 9/12 Kw Spindle Motor
- ISO40 Spindle Taper
- X, Y & Z Axis Linear Way
- Rigid, Stable, Accurate
- 5 Axes Rotary Table
- Quality & Efficiency

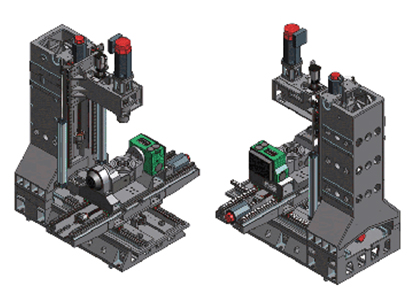

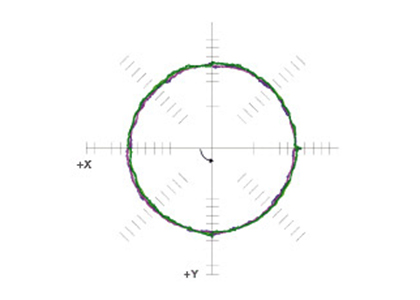

Rigid, Stable, Accurate
Ruggedly Constructed Throughout to Provtde Lifetime Accuracy Year After Year
- The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
- Roller type linear ways on X, Y, Z axis increased stability.
- X, Y, Z axis are transmitted with class C3, Ø40mm ball screws.

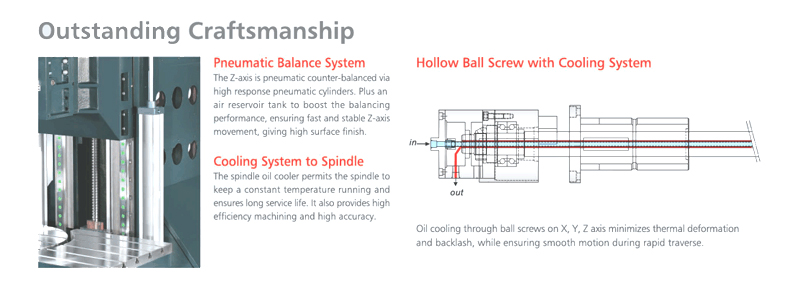

COOLANT THROUGH BALL SCREW (STANDARD)
Coolant through ball screws on X, Y axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse.
Pneumatic Balance System
The Z-axis is pneumatic counter-balanced via high response pneumatic cylinders. Plus an air reservoir tank to boost the balancing performance, ensuring fast and stable Z-axis movement, giving high surface finish.
Cooling System To Spindle
The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy.

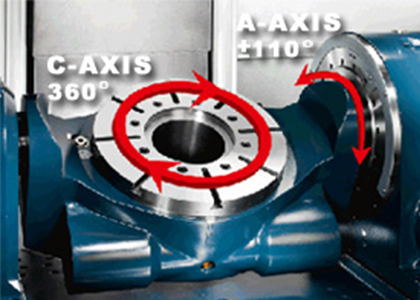

- Rotary Table diameter Ø320 / Ø450mm
- Table rotation and tilting are driven by servo motor
- Positioning accuracy, A/C-axis: 15"/10"
- Repeatability accuracy, A/C-axis: 10"/8"
Perfect Accessories for Outstanding Performance
|Not Iron Material||X||O||X|
AUTOMATIC LUBRICATION SYSTEM
The Lubrication System automatically measures and accurately distributes the oil to the slide ways, ballscrews and bearings.
The full-enclosed splash guard meets environmental protection and CE requirements. It offers users a comfortable working environment.

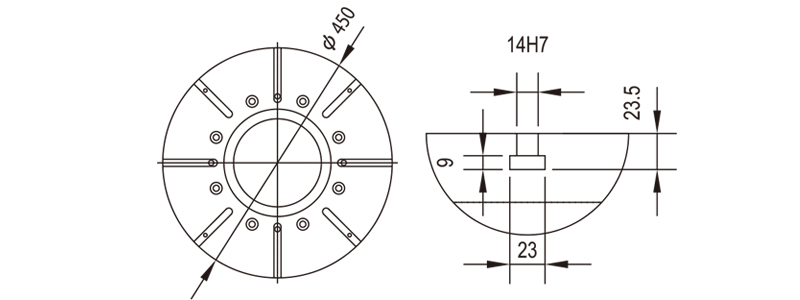

|Table Size (mm)||Ø450|

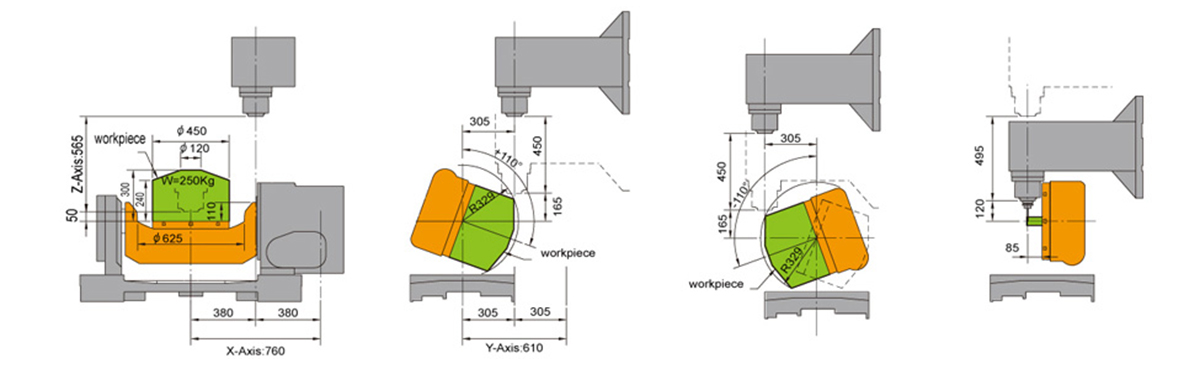

|Travel Ranges (X x Y x Z mm)||760 x 610 x 560|
|T Slot Size (Size x deg )||14 x 45|
|Max. Table Load (0°/90°)||300 /250|
|Max. Workpiece Size (W x H mm)||Ø600x 300|
|Diameter of Table Hole (mm)||Ø171|
|Spindle Nose to Table Surface (mm)||50~565|
|A Axis, Tilt (deg)/(0.001°)||220°(±110°)|
|C Axis, Rotary (deg)/(0.001°)||360°|
|Tool Shank & Pull Stud||ISO40|
|Spindle Inner Diameter (mm)||Ø70|
|Spindle Speed (rpm) Direct drive||10000 (12000/15000)|
|Spindle Speed (rpm) Built-in||18000 (20000/24000)|
|Main Motor (con/30 min Kw)||9/12|
|AXIS SERVO MOTOR|
|Rapid Feed Rate (X/Y/Z m/min)||30/30/24|
|Feed Rate (X/Y/Z/ m/min)||10|
|Feed Rate (A/C rev/min)||5.5/11.5|
|X Axis Rated Torque (Nm)||10|
|Y Axis Rated Torque (Nm)||10|
|Z Axis Rated Torque (Nm)||10|
|A Axis Rated Torque (Nm)||10|
|C Axis Rated Torque (Nm)||10|
|AUTO TOOL CHANGER|
|ATC Type||DISK - 24,30(Chain-40)|
|Tool Selection (Bi-direction)||RANDOM|
|Tool Storage Capacity (PCs)||24 (30,40)|
|Max. Tool Diameter (mm)||90 (76)|
|Max. Tool Length||300|
|Max. Tool Weight||8|
|Air Requirement (Kg/cm2)||6|
|Hydraulic Requirement (Kg/cm2, L)||40, 30L|
|Power Requirement (KVA)||40|
|Coolant Tank Capacity (L)||300|
|Machine Weight (KGs)||7000|
|Machine Height (mm)||2900|

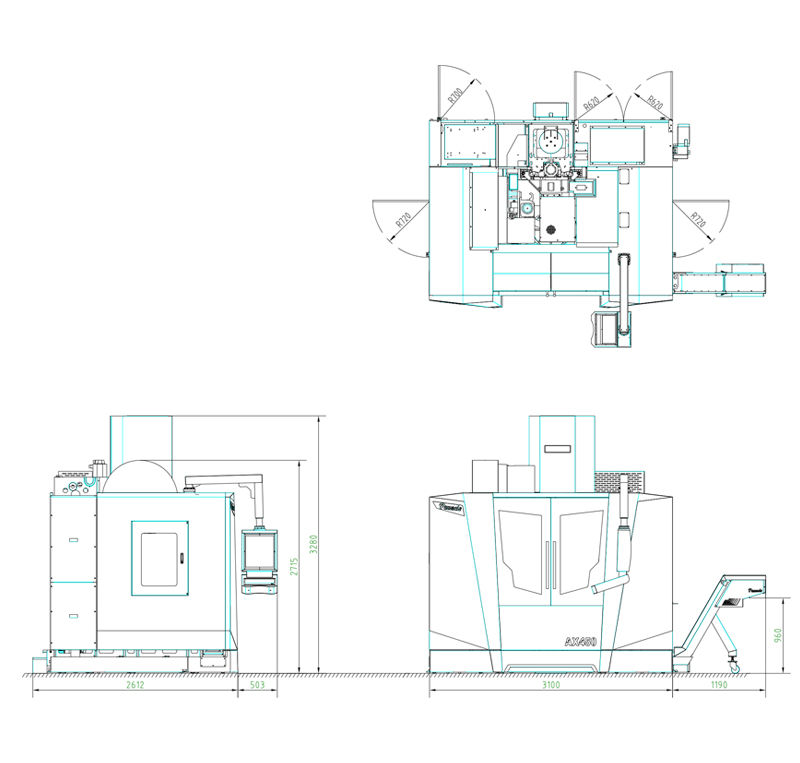

|Floor Space (L x W mm)||3100 x 2230|
|Packing Size (L x W x H mm)||3100 x 2230 x 2560|
All Specifications And Designs Are Subject To Change Without Notice.
