BX series

BX900/BX900DD/BX900T
High-Tech Expertise in 5-axis Machining

BX900

5 - AXIS MACHINING CENTER

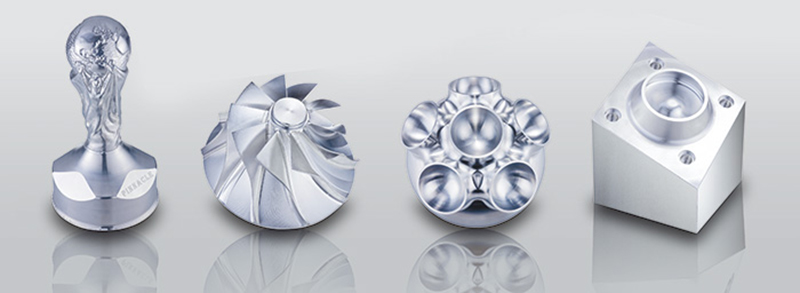

BX series machines by Pinnacle offer the latest and most precise 5-axis technology in the market. Simplify setup and production of complex and multi-sided parts without sacrificing precision and accuracy and saving time. Optimized 5-axis concepts meet every requirement and prevail in all industries worldwide BX series designed by Pinnacle that are High rigidity structure to provide widest working range. Hi quality Meehanite casting iron, tempered for stress relief and over HB190 hardness to ensure deformation-free performance year and year.

Features

  • Real powerful 5-axis machining center
  • Fast and contour-accurate motion guide
  • High-quality surface
  • The shortest machining time

BX900/BX900DD/BX900T

High precision, 5-axis control vertical machining center that a swivel head with DD Motor on the rotary table to achieves the highest productivity in 5 axis machining.

  • Features
  • Specifications
  • Accessories
  • Video
High Speed 5 axes M/C

5 axes Machining Center
Built-in 15000rpm Spindle Speed
Built-in C-axis table

Heidenhain TNC640

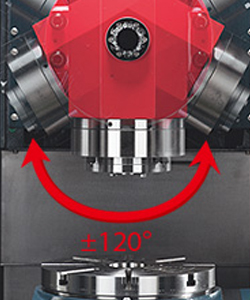

B-AXIS-SWIVEL MILLING HEAD

Hi-Speed, Hi-Power, Hi-Torque, Built-in Spindle 15000 rpm, swivels ±120°

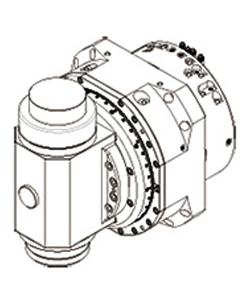

Unique B-axis Design(OPTION)

The transmission mechanism of B axis for BX-series is innovated from dual worm wheel/shaft to direct drive. In addition to the smooth and powerful torque, the direct driving system features higher rotation sped, high servo response, zero backlash, and outstanding dynamic accuracy for the optimum workpiece surface finish. The external cooling system efficiently minimizes the structural thermo deformation and accuracy deflection, moreover, the output torque is upheld since the temperature is constantly kept in low and stable level.

The rear end of B axis shaft is fitted with and angular position coder to boost positioning accuracy of B axis. The application of direct drive motor in B and C axis increases the overall accuracy as well as machining efficiency of the machine.

Pinnacle BX is the best cost-effective manufacturing investment of 5-axis simultaneously controlled machining centers, it brings positive and instant results by improving machining accuracy and reducing cutting time.

BX900 / BX900DD / BX900T is high speed, high accuracy with HEIDENHAIN TNC640 5-axis simultaneously controlled machining center. Equips 15000rpm built-in spindle, B-axis swivel head ±120°, and C-axis Ø800mm rotary table (Built-in DD C-axis) to optimize machining space and allows complex workpieces to be finished in just one setup and reduces cycle time.

Hollow Ball Screw with Cooling System

Oil cooling through ball screws on X, Y, Z axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse.

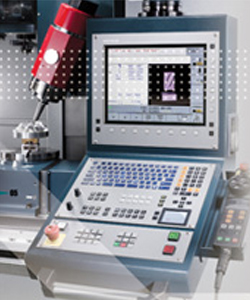

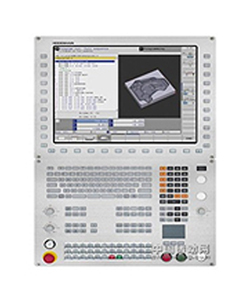

CNC CONTROLLER SYSTEM

BX series is high speed, high accuracy with HEIDENHAIN TNC640 5-axis simultaneously controlled machining center. Standard with 15000rpm built-in spindle.

PLANE Function

The PLANE feature makes it easy to define a tilted working plane so that making everything much.

Tilting the Working Plane

Use tilting the working plane. With Cycle 19 with swivel heads or tilting tables. You program the operation as usual in the working plane, for example in X/Y. The machine runs the program in a plane that has been tilted by one or more rotary axes with respect to the main plane.

DCM (Dynamic Collision Monitoring)

DCM enables you to check for collision in the test run mode before acutally machining a part. To avoiding machine dowtimes. Simulation for a safety process.

TCPM function (Tool Center Point Management)

In five-axis operations, TCPM function to move the tool reliably on the contour and ensure that the work surface is not damaged. Maintain the position of the tool tip when positioning with tilted axes.

With the aid of the TCPM function, the iTNC 530 automatically corrects the tool path for the machine geometry and the tool length as well as compensates the tool radiusin three dimensions.

Chip Flushing System

Chip flushing system is equipped to remove cutting chips inside of enclosure, which prevents chip accumulation and any possible damage to the linear guideways and ball screws.

Coolant Through Spindle (Option)

20 Bar high pressure pump and sub tank assure CTS system offers the highest efficiency of chip disposal.

Chip Conveyor (Option)

Hinge type or scraper type chip conveyor in front side of machine (able head to left or right) removes chips from machine.

Kinematice Opt. (Option)

KinematiceOpt. is an important component to help you meet these high requirements: With a HEIDENHAIN touch probe inserted, a 3-D touch probe cycle measures your machine's rotary axes fully automatically. The results of measurement are the same, regardless of whether the axis is a rotary table, a tilting table or a swivel head.

B-AXIS-SWIVEL MILLING HEAD

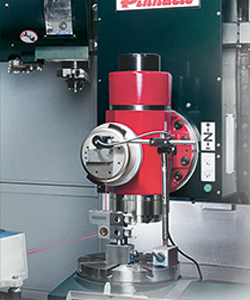

BALL BAR DIAGNOSTICS

All Aspect Quality System

Quality comes not from inspection but from every Pinnacle staffs' mentality. The state-of-the-art inspection equipments only help us to prove our attitude and accuracy results.

MODEL BX900 BX900DD BX900T
TABLE
TABLE SIZE (mm) 1700x850 1700x850 1700x850
TRAVEL RANGES (X/Y mm) 1500/900 1500/900 1500/900
TRAVEL RANGES (Z mm) Vertical 1000 /
Horizontal 1100
Vertical 1000 /
Horizontal 1100
Vertical 1000 /
Horizontal 1100
MAX. TABLE LOAD (Kg) 1200 1200 1200
SPINDLE NOSE TO TABLE SURFACE (VERTICAL) 115~1115 115~1115 100~1100
SPINDLE CENTER TO TABLE SURFACE (HORIZONTAL) 255~1355 255~1355 255~1355
T-SLOT (W x D x N mm) 18x150x5 18x150x5 18x150x5
BUILT-IN SPINDLE
SPINDLE TAPER DIN40 DIN40 HSK63T
BEARING INNER DIAMETER (mm) Ø 70 Ø 70 Ø 70
SPINDLE CENTER TO COLUMN (mm)  950 950 970
SPINDLE SPEED (rpm) 15000 15000 15000
DRAW BAR FORCE (Kgf) 900±100 900±100 1800±100
MAIN MOTOR (con /S6 60% kW) 15/19.4 15/19.4 19/23
MOTOR TYPE E+A                      mW16/17-8 E+A                      mW16/17-8 ATE                      AC180/150/8
MOTOR TORQUE (con/max Nm) 71.6/172 71.6/172 93/239
SWING HEAD
DRIVER TYPE WORM GEAR Direct drive Direct drive
REDUCTION RATIO 1:120 - -
TILTING RANGE (deg) ±120° ±120° ±120°
ROTATION SPEED (rpm) 16.6 50 50
MIN. INDEX (deg) 0.001 0.001 0.001
CLAMP TORQUE (Nm) 1765 2950 2950
WORKING TORGE (Nm) 765 689 689
SWING HEAD
TYPE EMBEDDED EMBEDDED EMBEDDED
DRIVER TYPE Direct drive Direct drive Direct drive
TABLE DIAMETER (mm) Ø800 Ø800 Ø800
CENTER BORE DIAMETER (mm) Ø60 Ø60 Ø60
ROTATION SPEED (rpm) 50 50 50(Mill) / 800(Turn)
MIN. INDEX (deg) 0.001 0.001 0.001
MAX. TABLE LOAD (Kg) 1200 1200 800(Mill) / 500(Turn)
AXIS SERVOMOTORS
RAPID FEED RATE (X/Y/Z m/min) 20/20/16 20/20/16 20/20/16
FEED RATE (X/Y/Z mm/min) 10000 10000 10000
 X/Y/Z-Axis Rated Torque  (Nm) 30.6/30.6/30.6 30.6/30.6/30.6 30.6/30.6/30.6
B-Axis Rated Torque (Nm) 11 689 689
C-Axis Rated Torque (Nm) 533 533 533
TOOL MAGAZINE
ATC TYPE PLATE PLATE PLATE
CAM TYPE DAUL ARM DAUL ARM DAUL ARM
TOOL SELECTION (Bi-direction) RANDOM RANDOM RANDOM
TOOL STORAGE CAPACITY (PCs) 30(60) 30(60) 30(60)
MAX. TOOL DIAMETER (mm) Ø75 Ø75 Ø75
MAX. TOOL LENGTH 250 250 250
MAX. TOOL WEIGHT 8 8 8
MISCELLANEOUS
Positioning    X/Y/Z linear axis(mm) 0.005 0.005 0.005
                   B/C rotary axis(sec) 14"/10" 10"/10" 10"/10"
Repeatability X/Y/Z linear axis(mm) 0.003 0.003 0.003
                   B/C rotary axis(sec) 8"/6" 6"/6" 6"/6"
OTHERS
AIR REQUIREMENT (Kg/cm2) 6 6 6
VOLTAGE 380 380 380
POWER REQUIREMENT (KVA) 50 50 50
COOLANT TANK CAPACITY (L) 700 700 700
MACHINE WEIGHT (KGs) 15000 15000 15000
MACHINE HEIGHT (mm) 3450 3450 3450
FLOOR SPACE (LxW mm) 4450x4340 4450x4340 4450x4340
PACKING SIZE (LxWxH mm) 4300x3260x4030 4300x3260x4030 4300x3260x4030

All Specifications And Designs Are Subject To Change Without Notice.

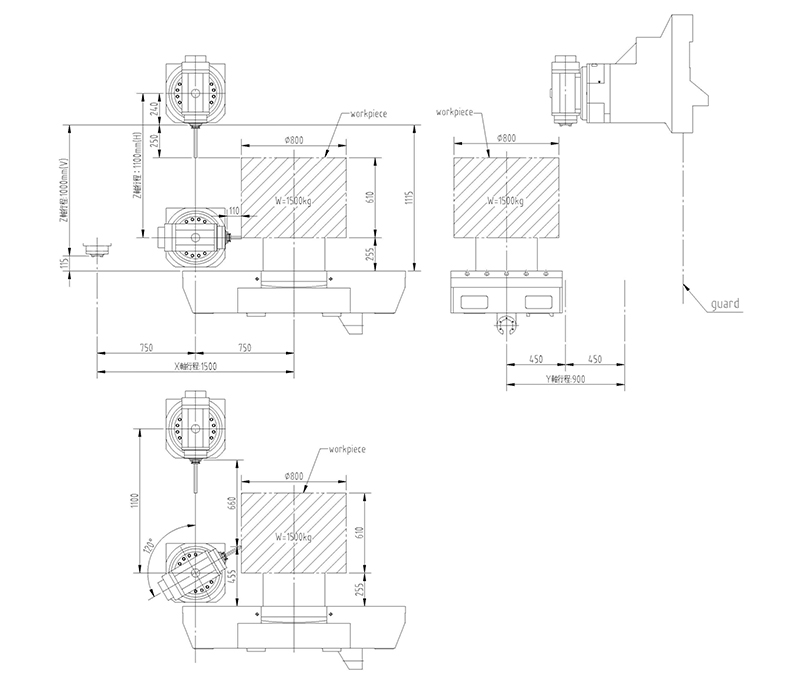

BX900DD WORK RANGE

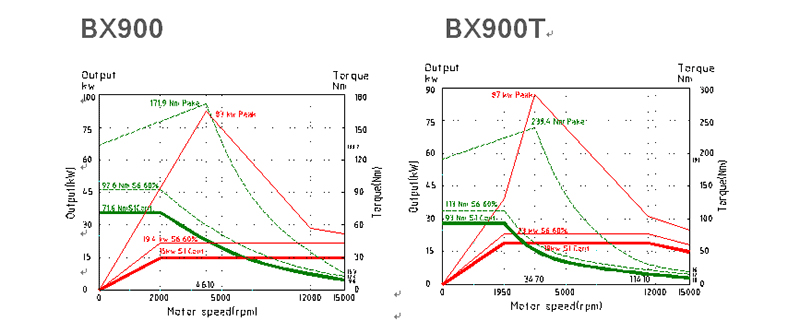

SPINDLE POWER CHART
Standard Accessories
  • Air blast through spindle
  • Coolant system
  • Full splash guard
  • Automatic lubrication system
  • Working lamp
  • Operation status light
  • Rigid tapping
  • Air gun / water gun
  • MPG handwheel
  • Spindle oil cooler
  • B Axis Rotary Encoder
  • C Axis Rotary Encoder
  • Hollow ball screws with cooling system
  • RS-232 interface
