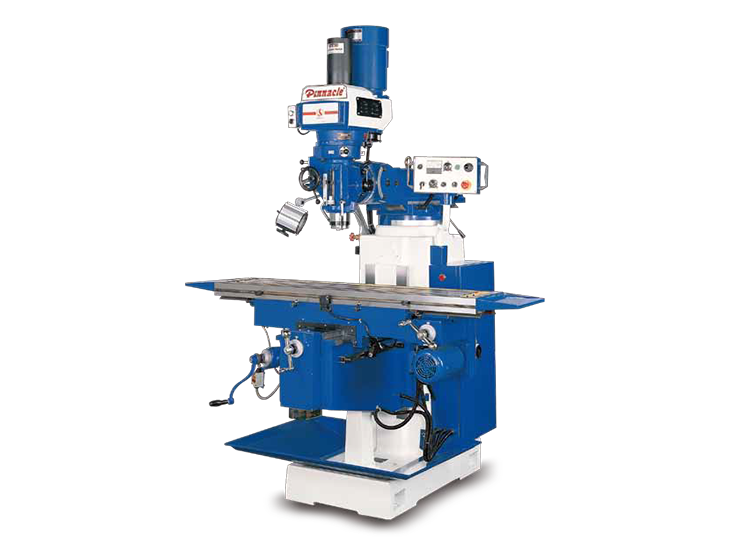

PK-FV3

PK-FV3

Features

  • The rigid and precision spindle is driven by a powerful inverter motor.
  • 60" x 12" working table with ground T-slots.
  • High rigid precision spindle driven by 5 HP powerful motor X,Y axes are driven by inverter motors.
  • NT40# spindle taper.
  • The X, Y and Z axes slideways and top of working surface are hardened and ground.
  • Square slideways on column and knee.
  • Specifications
  • Accessories
MODEL PK-FV3
Table 1524 x 305 mm
TRAVEL
Longitudinal 800 mm
Cross 400 mm
Vertical 380 mm
SPINDLE
Taper NT40#
Dia. of Quill 100 mm
Spindle Travel 127 mm
Spindle Nose to Table Surface 80-483mm
Spindle Center to Column 180-770mm
Main Motor for Inverting 3.75 Kw
Inverter 3.75 Kw
Variable Speed 70 - 4200 R.P.M.
Quill Feeds Per. Rev. of Spindle 0.004 - 0.008 - 0.15 mm
Feed Motro ( X, Y, Z - Axis ) 0.375 KW / 0.375 KW / 0.2 KW
Feed Rate ( X, Y - Axis ) Min: 20 mm/min Max.: 2200 mm/min
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 1550 Kgs

All Specifications And Designs Are Subject To Change Without Notice.

Standard Accessories
  • Cooling Pump System
  • Auto Lubrication System
  • Way Chip Protectors
  • Air Power Drawbar
  • Inverting Motor for X, Y
  • Rapid Motor for Knee Elevation
  • Chip Tray
  • Tool Box with Tools
  • Halogen Worklight
  • Electric Control Cabinet with Operation Panel
