AX series

AX170
High-Tech Expertise in 5-axis Machining

AX170

5 - AXIS MACHINING CENTER

The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. A/C adopt DD motor ensure the high accuracy and efficient.

The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error,while dramatically increasing machining and accuracy.

Pinnacle AX170/ AX320/ AX450/ AX500 are proven to be super machines for high efficiency and accuracy.

Features

  • 320 x 320 x 380 mm Travel
  • A Axis Tilt 240° (-120°/+120°)
  • C Axis Rotary 360°
  • Rapid Feedrate 36/36/36
  • 3.7/9.5 Kw Spindle Motor
  • ISO40 Spindle Taper
  • X, Y & Z Axis Linear Way
  • Rigid, Stable, Accurate
  • 5 Axes Rotary Table
  • Quality & Efficiency
  • Specifications
  • Accessories
  • Video

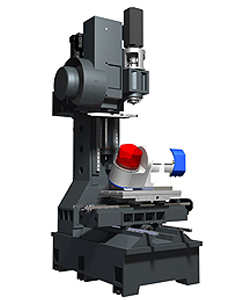

Rigid, Stable, Accurate

Ruggedly Constructed Throughout to Provtde Lifetime Accuracy Year After Year
  • The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
  • 25mm Roller type linear ways on X, Y, Z axis increased stability.
  • X, Y, Z axis are transmitted with class C3, Ø28mm ball screws.
High Speed 5 axes M/C

HSKA63 15000rpm
Table size ø170MM
DD motor table

Heidenhain TNC640

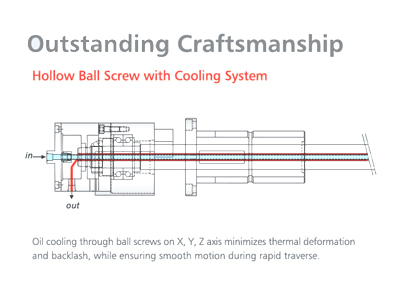

Hollow Ball Screw With Cooling System

Oil cooling through ball screws on X, Y, Z axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse.

Cooling System To Spindle

The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy.

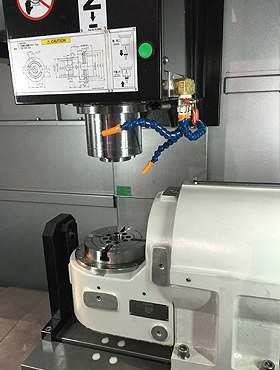

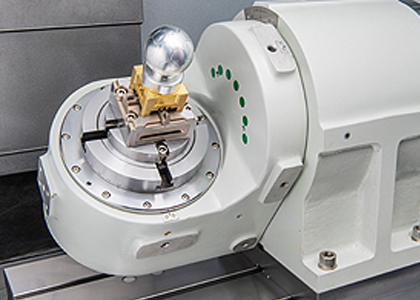

  • Rotary Table diameter Ø170
  • Table rotation and tilting are driven by DD motor
  • A/C-axes rotary speed: 60/200rpm
  • Rositioning accuracy, A/C-axis: 5"/5"
  • Repeatibility accuracy, A/C-axis: 8"/4"

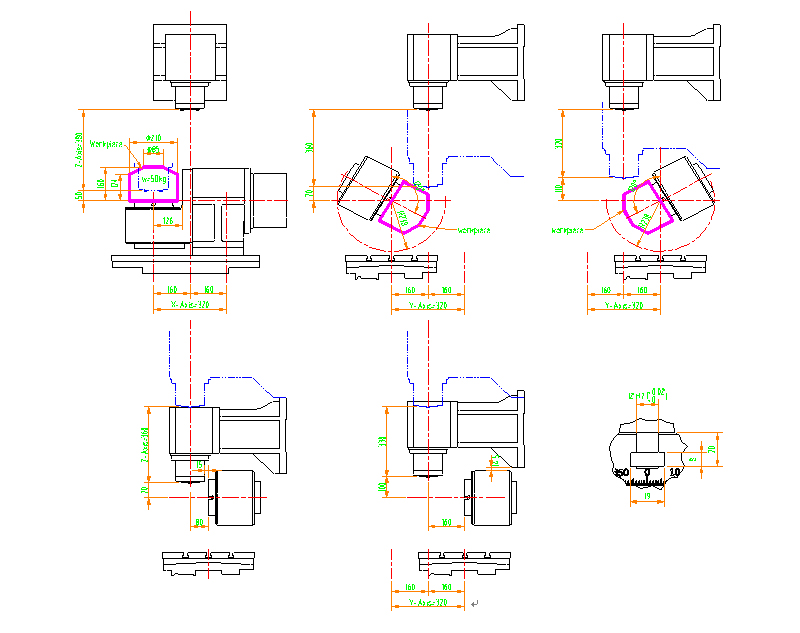

WORKING CAPACITY AX170
Perfect Accessories for Outstanding Performance
A/C Axes Inspection
Right Angle Test On X And Y Axes
Noise Inspection
Arm Type Atc
Couplings
Chips Flushing Nozzles
MODEL AX170
TABLE
Table Size (mm) Ø170
Travel Ranges (X/Y/Z mm) 320 / 320 / 380
Spindle Nose to Table Surface(mm) 50~430
Max. Table Load (kgs) 50
Max Workpiece Size (WxH mm) Ø210 x 160
Diameter of Table Hole (mm) Ø40
A-Axis, Title (deg) ±120°
C-Axis, Rotary (deg) 360°
A-Axis Max. Rapid Speed (rpm) 60
C-Axis Max. Rapid Speed (rpm) 200
T Slot Size 14 x 90° x 4
SPINDLE
Tool Shank & Pull Stud ISO40 (HSKA63)
Spindle Max Speed (rpm) 15000
Spindle Base Speed (rpm) 2000
Spindle Power (S1/max kW) 3.7 / 9.5
Spindle Torque (S1/max Nm) 18 / 45
Spindle Type Direct
Spindle Bearing Inner Diameter (mm) Ø60
AXIS SERVO MOTOR
Rapid Feed Rate (XY/Z m/min) 36 / 36 / 36
Cutting Speed (X/Y/Z mm/min) 20000
X/Y/Z-axes Rated Torque (Nm) 1.5 / 1.5 / 2.1
A-Axis Rate Torque (Nm) D.D motor 205
C-Axis Rate Torque (Nm) D.D motor 35
AUTO TOOL CHANGER
ATC Type DISK
Cam Type ARM TYPE
Tool Selection (Bi-Direction) RANDOM
Tool Storage Capacity (PCs) 20
Max. Tool Diameter (mm) Ø75
Max. Tool Length (mm) 250
Max. Tool Weight (Kgs) 8
MISCELLANEOUS
Positioning Accuracy X/Y/Z(mm) 0.005
A/C(arc-sec)  5" / 5"
Repeatability Accuracy X/Y/Z(mm) 0.003
A/C(arc-sec) 4"/4"
Floor Space (mm) 1900 x 2110 x 2550
Machine Weight (Kgs) 2800

All Specifications And Designs Are Subject To Change Without Notice.

TABLE SIZE

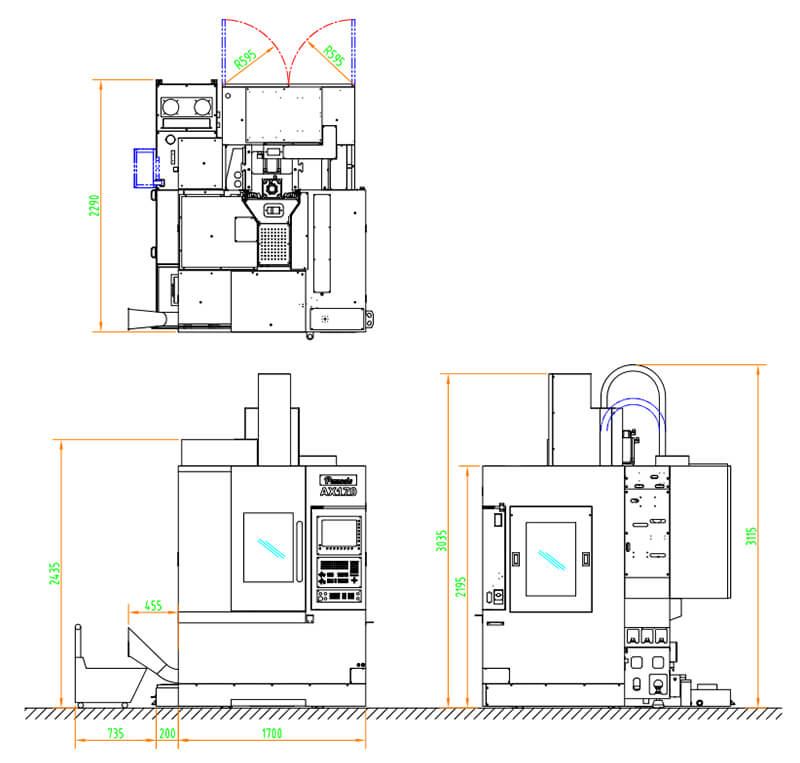

FLOOR SPACE
Accessories
  • Air Blast
  • Air Blast for Workpiece
  • 3 Axes Telescopic Covers
  • Full Splash Guard
  • Auto Lubrication System
  • A-Axis Rotary Encoder
  • C-Axis Rotary Encoder
  • Working Lamp
  • Operation Status Light
  • Cooling System
  • Air Gun / Water Gun
  • HR510 MPG
  • A/C for Electronic Cabinet
  • USB-RJ45 Interface
  • Heidenhain TNC640
  • DCM
  • Kinematice
  • Spindle Oil Cooler
  • Adjusting Tools and Box
  • 20-Arm Type ATC
  • Leveling Bolts and Pads
  • Manuals
Control System
  • Transformer
  • Coolant Through Spindle
  • Tool measurement system
  • Worpiece Measurement sytem
