BX series

BX300A/BX500A/BX700A
High-Tech Expertise in 5-axis Machining

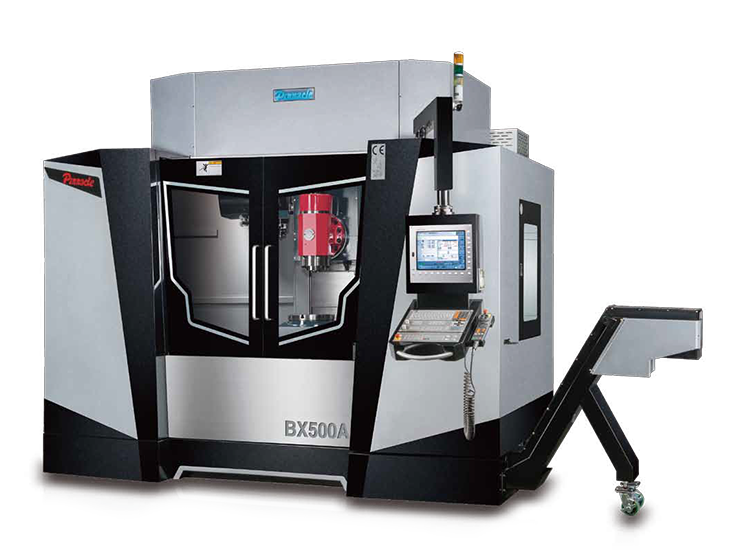

BX500A

5 - AXIS MACHINING CENTER

BX series machines by Pinnacle offer the latest and most precise 5-axis technology in the market. Simplify setup and production of complex and multi-sided parts without sacrificing precision and accuracy and saving time. Optimized 5-axis concepts meet every requirement and prevail in all industries worldwide BX series designed by Pinnacle that are High rigidity structure to provide widest working range. Hi quality Meehanite casting iron, tempered for stress relief and over HB190 hardness to ensure deformation-free performance year and year.

Features

  • Real powerful 5-axis machining center
  • Fast and contour-accurate motion guide
  • High-quality surface
  • The shortest machining time

BX300A/BX500A/BX700A

A 5-axis control vertical machining center with a swivel head and rotary table design. Rotary table is removable and machine could work as 4 axes machine.

  • Features
  • Specifications
  • Accessories
  • Video

B-AXIS-SWIVEL MILLING HEAD

Hi-Speed, Hi-Power, Hi-Torque, Built-in Spindle 15000 rpm, swivels ±120°

Unique B-axis Design

The transmission mechanism of B axis for model BX700DD is innovated from dual worm wheel/shaft to direct drive. In addition to the smooth and powerful torque, the direct driving system features higher rotation sped, high servo response, zero backlash, and outstanding dynamic accuracy for the optimum workpiece surface finish. The external cooling system efficiently minimizes the structural thermo deformation and accuracy deflection, moreover, the output torque is upheld since the temperature is constantly kept in low and stable level.

The rear end of B axis shaft is fitted with and angular position coder to boost positioning accuracy of B axis. The application of direct drive motor in B and C axis increases the overall accuracy as well as machining efficiency of the machine.

Pinnacle BX is the best cost-effective manufacturing investment of 5-axis simultaneously controlled machining centers, it brings positive and instant results by improving machining accuracy and reducing cutting time.

BX700 / BX500 is high speed, high accuracy with HEIDENHAIN TNC640 5-axis simultaneously controlled machining center. Equips 15000rpm built-in spindle, B-axis swivel head ±120°, and C-axis Ø630mm rotary table (Built-in DD C-axis) to optimize machining space and allows complex workpieces to be finished in just one setup and reduces cycle time.

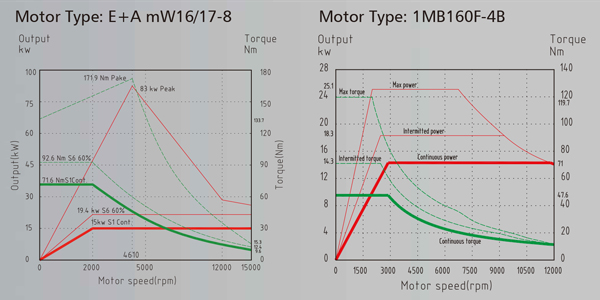

SPINDLE TORQUE OUTPUT DIAGRAM

Outstanding Craftsmanship

Pneumatic Balance System

The Z-axis is pneumatic counter-balanced via high response pneumatic cylinders. Plus an air reservoir tank to boost the balancing performance, ensuring fast and stable Z-axis movement, giving high surface finish.


Cooling System to Spindle

The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy.

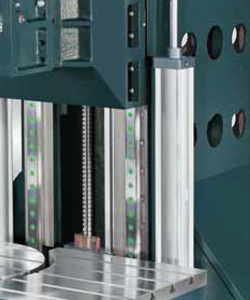

Linear Roller Guideway

X/Y/Z axes adopt roller guideways for optimum rigidity and speed. 6 rolling shoes on X/Z axes minimize damping effect.

Hollow Ball Screw with Cooling System

Oil cooling through ball screws on X, Y, Z axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse.

CNC CONTROLLER SYSTEM

BX series is high speed, high accuracy with HEIDENHAIN TNC640 5-axis simultaneously controlled machining center. Standard with 15000rpm built-in spindle.

PLANE Function

The PLANE feature makes it easy to define a tilted working plane so that making everything much.

Tilting the Working Plane

Use tilting the working plane. With Cycle 19 with swivel heads or tilting tables. You program the operation as usual in the working plane, for example in X/Y. The machine runs the program in a plane that has been tilted by one or more rotary axes with respect to the main plane.

DCM (Dynamic Collision Monitoring)

DCM enables you to check for collision in the test run mode before acutally machining a part. To avoiding machine dowtimes. Simulation for a safety process.

TCPM function (Tool Center Point Management)

In five-axis operations, TCPM function to move the tool reliably on the contour and ensure that the work surface is not damaged. Maintain the position of the tool tip when positioning with tilted axes.

With the aid of the TCPM function, the iTNC 530 automatically corrects the tool path for the machine geometry and the tool length as well as compensates the tool radiusin three dimensions.

Chip Flushing System

Chip flushing system is equipped to remove cutting chips inside of enclosure, which prevents chip accumulation and any possible damage to the linear guideways and ball screws.

Coolant Through Spindle (Option)

20 Bar high pressure pump and sub tank assure CTS system offers the highest efficiency of chip disposal.

Chip Conveyor (Option)

Hinge type or scraper type chip conveyor in front side of machine (able head to left or right) removes chips from machine.

Kinematice Opt. (Option)

KinematiceOpt. is an important component to help you meet these high requirements: With a HEIDENHAIN touch probe inserted, a 3-D touch probe cycle measures your machine's rotary axes fully automatically. The results of measurement are the same, regardless of whether the axis is a rotary table, a tilting table or a swivel head.

B-AXIS-SWIVEL MILLING HEAD

BALL BAR DIAGNOSTICS

All Aspect Quality System

Quality comes not from inspection but from every Pinnacle staffs' mentality. The state-of-the-art inspection equipments only help us to prove our attitude and accuracy results.

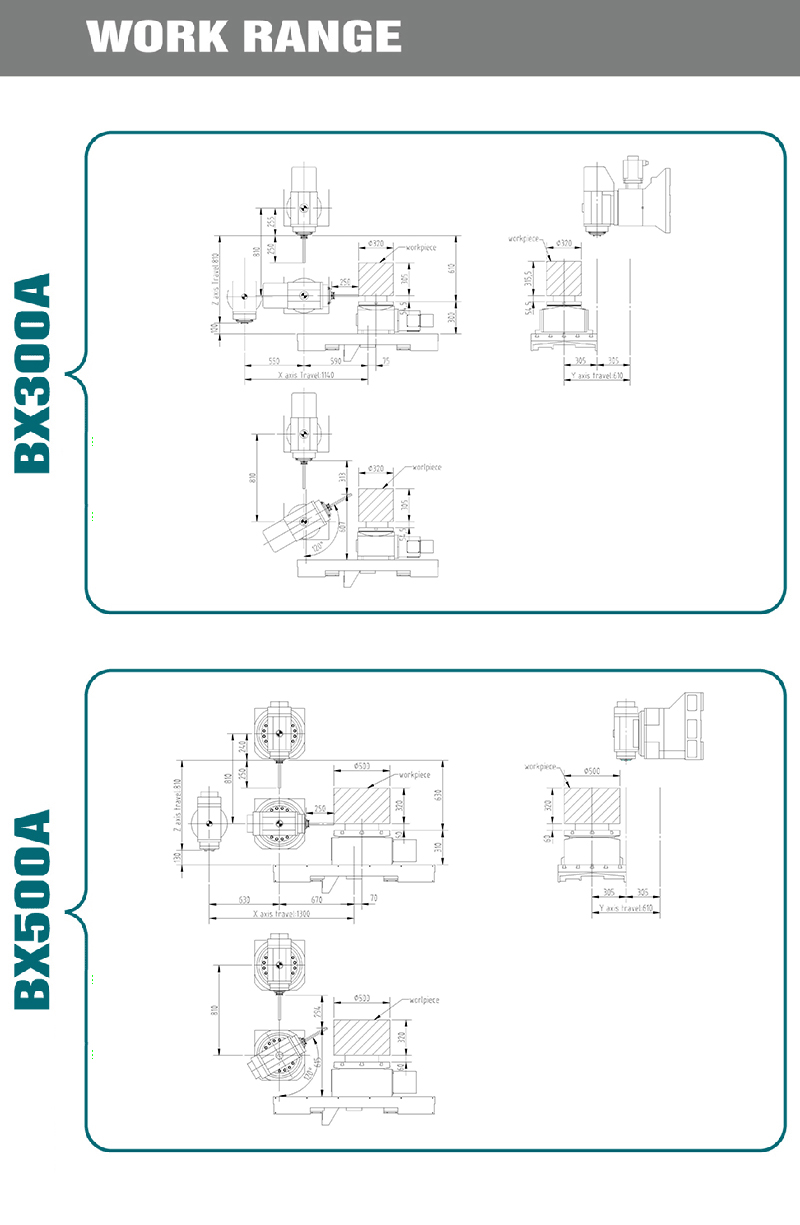

MODEL BX300A BX500A BX700A
TABLE
Table Size (mm) 1300 x 610 1450 x 610 1600 x 700
Travel Ranges (X  mm) 1140 1300 1400
Travel Ranges ( Y  mm) 610 610 710
Travel Ranges ( Z mm) 810 810 810
Max. Table Load (kgs) 850 850 1000
Spindle Nose to Table Surface (Vertical)(mm) 110 ~ 920 110 ~ 920 180 ~ 990
Spindle Center to Table Surface (Horizontal)(mm) 355~1165 355~1165 420~1230
T-slot (Width x Distance x Number mm) 18 x 125 x 5 18 x 125 x 5 18 x 125 x 5
BUILT-IN SPINDLE
Spindle Taper DIN40 (HSKA63) DIN40 (HSKA63) DIN40 (HSKA63)
Bearing Inner Diameter (mm) Ø70 Ø70 Ø70
Spindle Center to Column (mm) 675 675 760
Spindle Speed (rpm) 15000 15000 15000
Draw Bar Force (kgf) 800 ± 100 800 ± 100 900 ± 100
Main Motor (con/ 30min kw) 15 / 18 15 / 18 15 / 19.4
Moto Type INDRAMAT
IMB 160F~4B
INDRAMAT
IMB 160F~4B
E+A
mW16/17-8
Motor Torque (con/ max Nw) 48 / 120 48 / 120 71.6 / 134
SWING HEAD
Driver Type WORM GEAR WORM GEAR WORM GEAR
Reduction Ratio 1 : 72 1 : 72 1 : 120
Tilting Range (deg) ± 120° ± 120° ± 120°
Max. Speed (rpm) 25 25 16.6
Max. Unit 0.001 0.001 0.001
Clamp Torque (Nm) 1157 1157 1765
Working Torge (Nm) 764 764 765
ROTARY TABLE
Driver Type SEPARATED SEPARATED SEPARATED
Type WORM GEAR WORM GEAR WORM GEAR
Table Diameter (mm) Ø 320 Ø 500 Ø 630
Center Bore Diameter (mm) Ø 70 Ø 60 Ø 75
Rotation Speed(rpm) 22.2 11.1 11.1
Min. lndex 0.001 0.001 0.001
Max. Table Load (kg) 350 500 800
AXIS SERVO MOTOR
Rapid Feed Rate X/Y/Z m/(min) 36 / 36 / 24 36 / 36 / 24 36 / 36 / 24
Feed Rate (X / Y / Z mm/min) 10000 10000 10000
Rated Torque (X / Y /Z Nm) 11 / 11 / 11 11 / 11 / 11 18.1 / 18.1 / 18.1
B-Axis Rated Torque (Nm) 11 11 11
C-Axis Rated Torque (Nm) 11 11 11
TOOL MAGAZINE
ATC Type PLATE PLATE PLATE
CAM Type DAUL ARM DAUL ARM DAUL ARM
Tool Selection (Bi-direction) RANDOM RANDOM RANDOM
Tool Storage Capacity (pcs) 30 (40, 60) 30 (40, 60) 30 (40, 60)
Max. Tool Diameter (mm) Ø75 Ø75 Ø75
Max. Tool Length 250 250 250
Max. Tool Weight 8 8 8
ACCURACY
Positioning XYZ linear axis (mm) 0.005 0.005 0.005
BC rotary (sec) 14"/14" 14"/14" 14"/14"
Repeatability XYZ linear axis (mm) 0.003 0.003 0.003
BC rotary (sec) 8"/8" 8"/8" 8"/8"
MISCELLANEOUS
Air Requirement (kg/cm²) 6 6 6
Voltage 380 380 380
Power Requirement (KVA) 40 40 40
Coolant Tank Capacity (L) 300 300 450
Machine Weight (kgs) 6500 6800 11000
Machine Height (mm) 3100 3100 3200

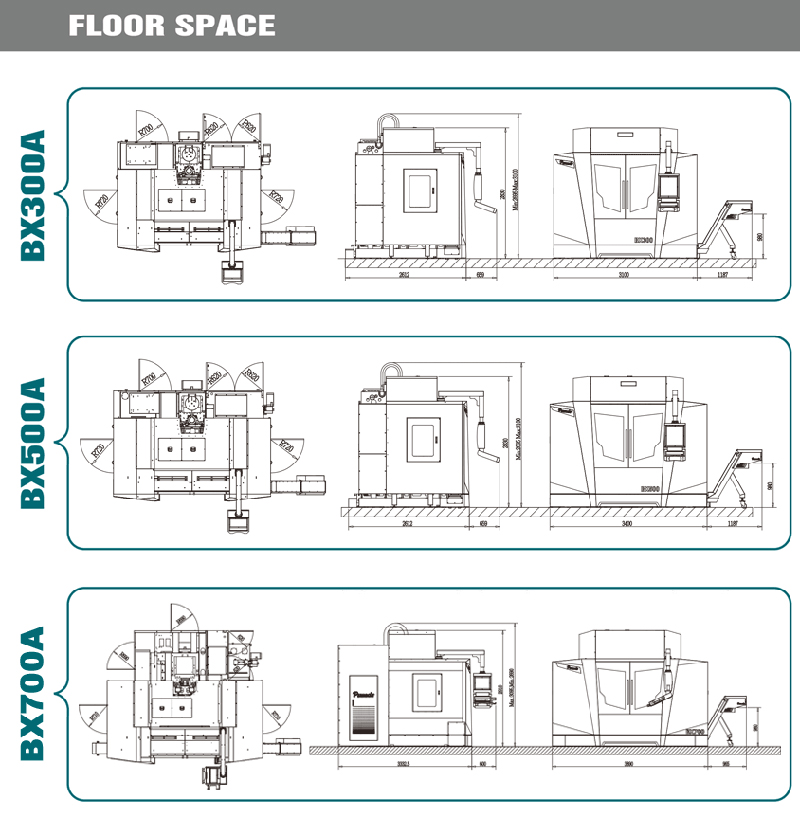

Floor Space (L x W mm) 3100 x 2230 3400 x 2230 3890 x 3180
Packing Size (L x W x H mm) 3150 x 2300 x 2550 3450 x 2300 x 2550 3230 x 2300 x 2560

All Specifications And Designs Are Subject To Change Without Notice.

Standard Accessories
  • Air blast through spindle
  • Coolant system
  • Full splash guard
  • Automatic lubrication system
  • Working lamp
  • Operation status light
  • Rigid tapping
  • Z axis pneumatic balance system
  • Air gun / water gun
  • MPG handwheel
  • Spindle oil cooler
  • B Axis Rotary Encoder
  • C Axis Rotary Encoder
  • Hollow ball screws with cooling system
  • RS-232 interface
