AX series

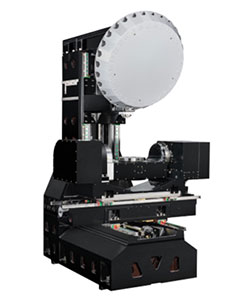

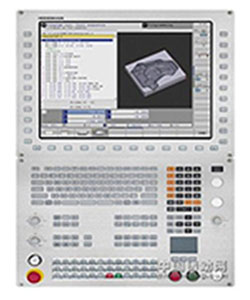

AX260
High-Tech Expertise in 5-axis Machining
5 - AXIS MACHINING CENTER
The major structure parts are manufactured from high quality Meehanite cast iron, tempered for stress relief. A/C adopt roller cam ensure the high accuracy and efficient.
The 5-axis synchronized machining saves machining time reduces repetitive workpiece setup and error, while dramatically increasing machining and accuracy.
Pinnacle AX170/ AX260/ AX320/ AX450/ AX500 are proven to be super machines for high efficiency and accuracy.
Features
- 510 x 455 x 380 mm
- A Axis Tilt 150° (-30°/+120°)
- C Axis Rotary 360°
- Rapid Feedrate 48/48/48
- 5.5/7.5 Kw Spindle Motor
- BBT30 Spindle Taper
- X, Y & Z Axis Linear Way
- Rigid, Stable, Accurate
- 5 Axes Rotary Table
- Quality & Efficiency
- Specifications
- Accessories
Rigid, Stable, Accurate
RUGGEDLY CONSTRUCTED THROUGHOUT TO PROVTDE LIFETIME ACCURACY YEAR AFTER YEAR
- The major structural parts are manufactured form high quality Meehanite cast iron (GB 300), tempered for stress relief with hardness over 190HB.
- T25mm Roller type linear ways on X, Y, Z axis increased stability.
- TX, Y, Z axis are transmitted with class C3, Ø28mm ball screws.

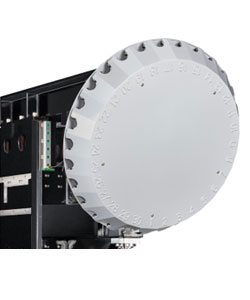

30T TOOL MAGAZINE
Big tool capacity 30 tools
Fast T-T time
Reliable ATC design
HIGH SPEED 5 AXES M/C
BBT30 12000rpm
Table size ø260MM
Roller Cam table

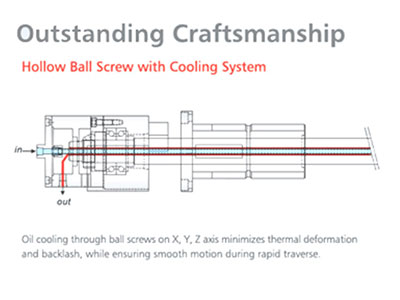

HOLLOW BALL SCREW WITH COOLING SYSTEM
Oil cooling through ball screws on X, Y, Z axis minimizes thermal deformation and backlash, while ensuring smooth motion during rapid traverse.
COOLING SYSTEM TO SPINDLE
The spindle oil cooler permits the spindle to keep a constant temperature running and ensures long service life. It also provides high efficiency machining and high accuracy.

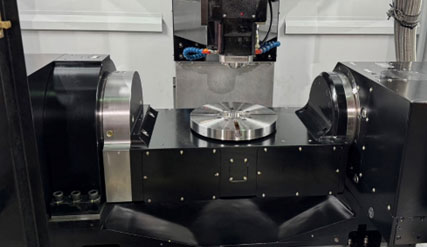

- Rotary Table diameter Ø260
- Table rotation and tilting are driven by Roller Cam
- A/C-axes rotary speed: 26.3/84.3rpm
- Rositioning accuracy, A/C-axis: 15"/10" (Encoder -opt.)
- Repeatibility accuracy, A/C-axis: 10"/8" (Encoder -opt.)
FERFECT ACCESSORIES FOR OUTSTANDING PERFORMANCE
A/C Axes Inspection
Right Angle Test On X And Y Axes
Noise Inspection
Fast Atc
Couplings
Chips Flushing Nozzles
| MODEL | AX260 |
|---|---|
| TABLE | |
| Table Size (mm) | Ø260 |
| Travel Ranges (X/Y/Z mm) | 510 / 455 / 380 |
| Spindle Nose to Table Surface(mm) | 80~460 |
| Max. Table Load (kgs) | 100 |
| Max Workpiece Size (WxH mm) | Ø500 x 300 |
| Diameter of Table Hole (mm) | Ø40 |
| A-Axis, Title (deg) | 150° (-30°/+120°) |
| C-Axis, Rotary (deg) | 360° |
| A-Axis Max. Rapid Speed (rpm) | 26.3 |
| C-Axis Max. Rapid Speed (rpm) | 84.3 |
| T Slot Size | 12 x 90° x 4 |
| SPINDLE | |
| Tool Shank & Pull Stud | BBT30 |
| Spindle Max Speed (rpm) | 15000 (20000) |
| Spindle Base Speed (rpm) | 1500 |
| Spindle Power (con/30min. kW) | 5.5 / 7.5 |
| Spindle Type | Direct |
| Spindle Bearing Inner Diameter (mm) | Ø40 |
| AXIS SERVO MOTOR | |
| Rapid Feed Rate (XY/Z m/min) | 48 / 48 / 48 |
| Cutting Speed (X/Y/Z mm/min) | 20000 |
| X/Y/Z-axes Rated Torque (Nm) | 14.3 / 14.3 / 14.3 |
| A-Axis Rate Torque (Nm) | 4.8 |
| C-Axis Rate Torque (Nm) | 3.2 |
| AUTO TOOL CHANGER | |
| ATC Type | TP TYPE |
| Cam Type | ARM TYPE |
| Tool Selection (Bi-Direction) | RANDOM |
| Tool Storage Capacity (PCs) | 30 |
| Max. Tool Diameter (mm) | Ø100 |
| Max. Tool Length (mm) | 250 |
| Max. Tool Weight (Kgs) | 3 |
| MISCELLANEOUS | |
| Positioning Accuracy X/Y/Z(mm) | 0.005 |
| A/C(arc-sec) | 15" / 10" (Encoder-opt.) |
| Repeatability Accuracy X/Y/Z(mm) | 0.003 |
| A/C(arc-sec) | 10"/8" (Encoder-opt.) |
| Floor Space (mm) | 2100 x 2580 x 3032 |
| Machine Weight (Kgs) | 4000 |
All Specifications And Designs Are Subject To Change Without Notice.
