PK series

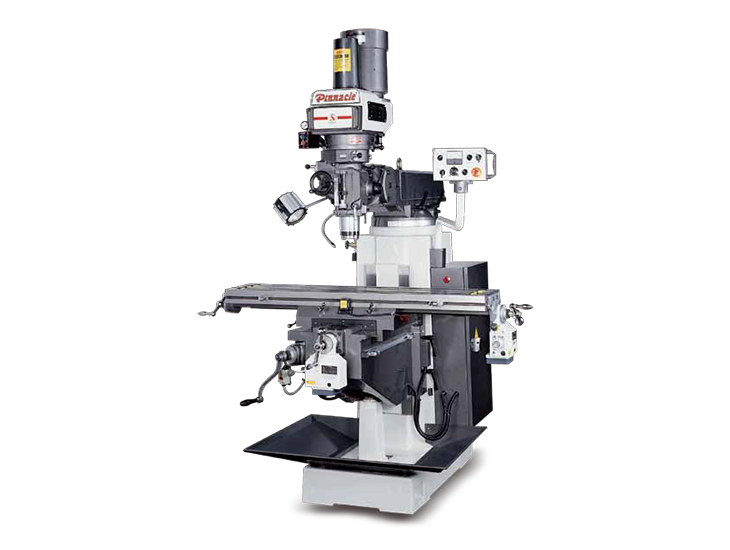

PK-FV2

PK-FV2

Features

  • The rigid and precision spindle is driven by a powerful inverter motor.
  • High rigid precision spindle driven by 5 HP powerful motor.
  • NT40# spindle taper.
  • The X, Y and Z axes slideways and top of working surface are hardened and ground.
  • Square slideways on column and knee.
  • Specifications
  • Accessories
MODEL PK-FV2
Table 1372 x 254mm
T-Slot (width x number x distance) 28 x 3 x 16
Rapid Feed Rate 890 mm/min
TRAVEL
Longitudinal 800 mm
Cross 380 mm
Vertical 380 mm
Spindle Travel 127 mm
Arm Travel 520 mm
SPINDLE
Taper NT40#
Spindle Nose to Table Surface 80-483 mm
Spindle Center to Column 180-515 mm
Dia. of Quill 70 - 4200 R.P.M.
Spindle Speed 0.04 - 0.08 - 0.15 mm
Main Motor for Inverting 5HP
Inverter 5HP
Swivel Angle to Right & Left 90°
Swivel Angle to Front & Back 45°
Approximate Net Weight 1450 Kgs

All Specifications And Designs Are Subject To Change Without Notice.

Standard Accessories
  • Cooling Pump System
  • Drawbar
  • Way Chip Protector
  • Chip Tray
  • Tool Box with Tools
  • Halogen Worklight
  • Power Feed for X Axis
  • Power Feed for Y Axis
  • Rapid Motor for Knee Elevation
  • Electric control box with operation panel
